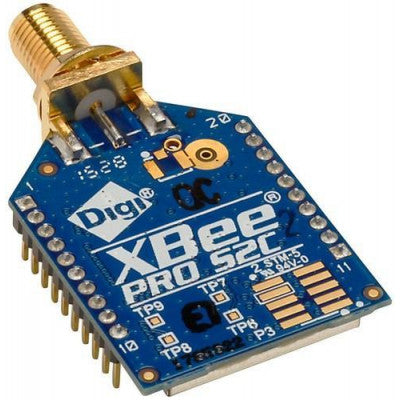

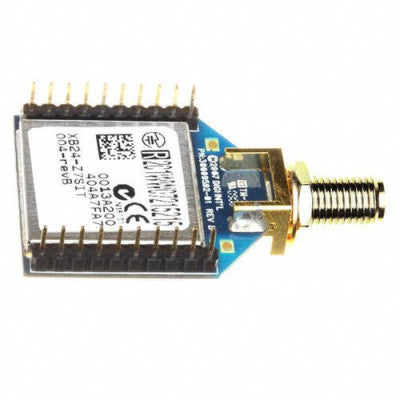

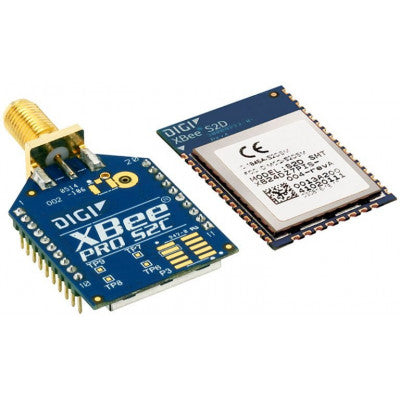

Zigbee XBee Pro S2C 802.15.4 Module 63mW 3Km+ XBP24CZ7SIT-004 Antenna
Cost-effective wireless connectivity for electronic devices with ZigBee RF modules.
- Brand: Digi
- Model: S2C PRO
- TRANSCEIVER CHIPSET: SiliconLabs EM357 SoC
- DATA RATE: 250kbps Max
- RATED OUTDOOR/RF LINE-OF-SIGHT RANGE: Up to 2 miles (3200m)
- Frequency Range: 2.4GHz
- Sensitivity (dBm): -101
- Input Supply Voltage (VDC): 2.7 ~ 3.6
- TRANSMIT CURRENT: 120 mA
- RECEIVE CURRENT: 31 mA
- Output Power: 63mW
- Operating Temperature (C): -40 to 90
- Antenna Connector: RP-SMA
- Interface Type: SPI, UART
Top Features:
- Supports binding and multicasting for home automation
- Mesh-network topology
- 2.4 GHz for worldwide deployment
- Common XBee footprint fits Parallax XBee Adapters and the Propeller Activity Board
The XBee and XBee-PRO ZigBee RF modules provide cost-effective wireless connectivity to electronic devices. They are interoperable with other ZigBee PRO feature set devices, including devices from other vendors. The XBee 802.15.4 products enable robust end-point connectivity with ease. Whether deployed as a pure cable replacement for simple serial communication, or as part of a more complex hub-and-spoke network of sensors, XBee 802.15.4 RF modules maximize performance and ease of development.
XBee and XBee-PRO ZigBee modules are ideal for hobbyists and educational research as well as applications in the energy and control markets where manufacturing efficiencies are critical. The Serial Peripheral Interface (SPI) provides a high-speed interface and optimizes the integration with embedded microcontrollers, lowering development costs and reducing time to market. Digis ZigBee compatible module is based on the Ember EM35x (EM357 and EM3587) system on chip (SoC) radio ICs from SiliconLabs, utilizing 32-bit ARM CortexTM M3 processor.
Application: Remote industrial control and monitoring, Long-range remote control, Wireless data acquisition, Wireless networking.
Package Includes:
- 1 x Zigbee XBee Pro S2C Module

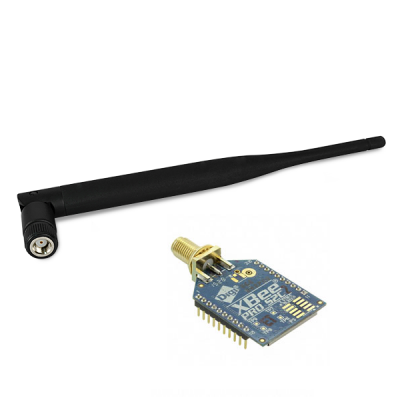

- 1 x XBP24CZ7SIT-004 Antenna
*Images are for illustration only; actual product may vary.
