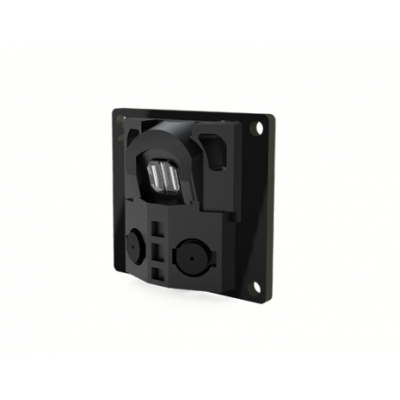

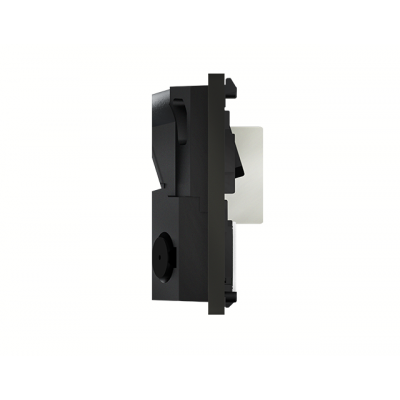

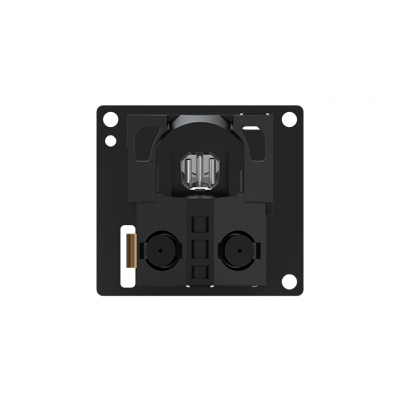

YDLIDAR GS2
Linear array LiDAR sensor for high-precision laser distance measurement
- Spec name: Linear array of solid LiDAR
- Principle: Triangulation
- Measurement: 100 degrees high-precision laser distance
- Output: Point cloud data of scanning environment
-
Applications:
- Robot obstacle avoidance
- Obstacle avoidance of smart equipment
- Navigation and obstacle avoidance of home service robots/vacuum clean robots
Top Features:
- High accuracy and stable performance
- High resolution ranging angle (up to 0.6 degrees)
- Good obstacle avoidance effect, detects objects as small as 3mm in diameter
- Wide detection range with no blind spots, FOV up to 100 degrees
YDLIDAR GS2 is equipped with related optics, electricity, and algorithm design to achieve precise laser distance measurement. It is ideal for robot obstacle avoidance, path planning, and more.
- Wide detection range blind area: 25mm~300mm
- Class: I eye safety
- Service life: 10000h
- Packages Includes: 1 x YDLIDAR GS2 Linear array solid LiDAR Sensor
*Images are for illustration only; actual product may vary.
