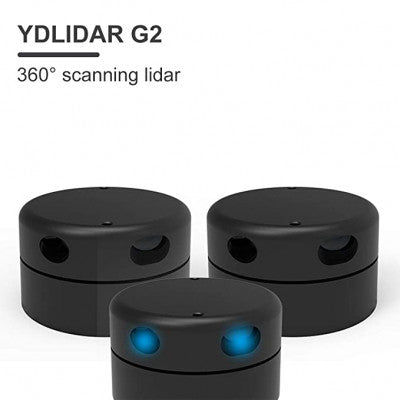

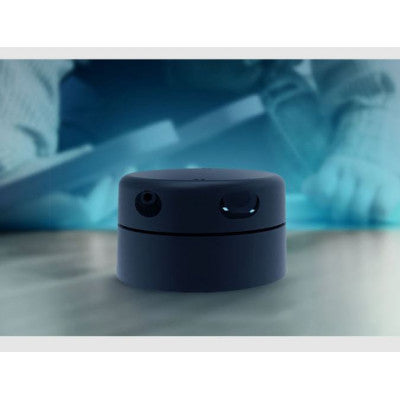

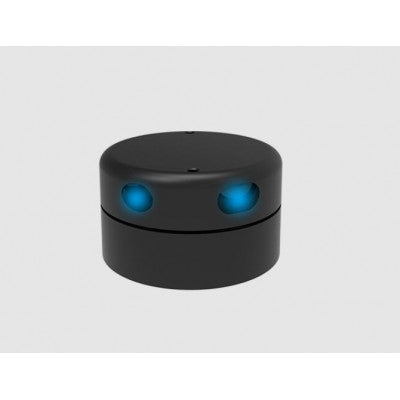

YDLIDAR G2 360 2D LiDAR
A high-frequency and high-precision LiDAR for various applications
- Spec name: 360 degrees 2D LiDAR
- Developed by: EAI team
- Principle: Triangulation
- Rotation: 360 degrees
- Applications: Robot navigation, obstacle avoidance, industrial automation, regional security, intelligent transportation, environmental scanning, 3D reconstruction, digital multimedia interaction, robot ROS teaching, and research
Top Features:
- 360 degrees scan ranging
- Stable performance and high accuracy

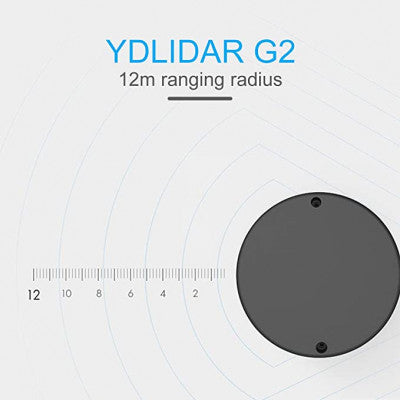

- Wide measuring range
- Strong resistance to ambient light interference
YDLIDAR G2 is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.

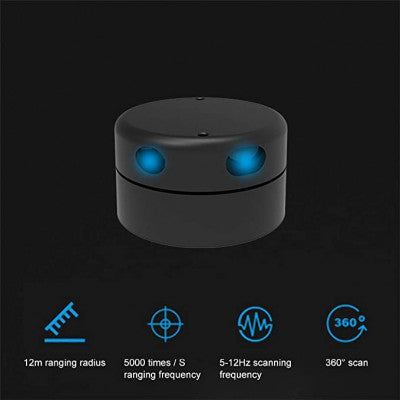

Industrial-grade brushless motor drive ensures stable performance, and the laser power meets Class I laser safety standards. The device offers 360 degrees omnidirectional scanning and operates at a frequency of 5-12Hz. It uses optical and magnetic fusion technology for wireless communication and wireless power supply, enabling high-speed ranging of up to 5000Hz frequency.
- Packages Includes: 1 x YDLIDAR G2 360 2D LiDAR
Images are for illustration only; actual product may vary.
