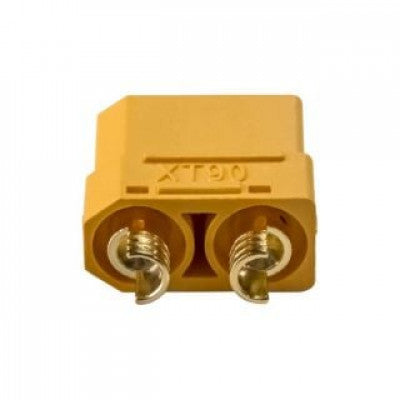

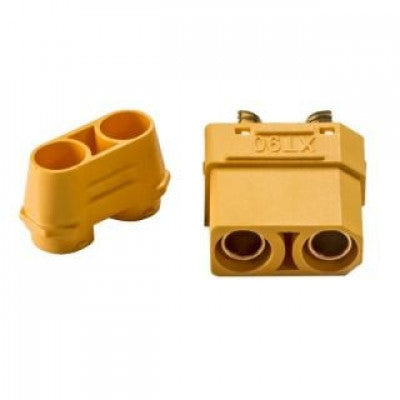

XT90 Female Connector with Housing
High-amp connection for applications up to 90A+
- Connector Type: XT90
- Gender: Female
- Metal connector size: 4.5mm
- Rated Current: 90A
- Metal Material: Brass
- Weight: 6g
- Contact Positions: 2
- Wire Insulation Material: Nylon
- Colour: Yellow
Features:
- 5mm gold bullet connector in nylon shroud
- Protection against shorting and reverse polarity
- Accepts up to 8AWG wires
- Semicircular solder terminals for easy wire installation
The XT90 Female Connector with Housing is constructed from high-temp Nylon and features gold plated spring connectors. The housing shape provides protection against shorting and reverse polarity. It can accept wires up to 8AWG and sustain a continuous current of 90A+. The connectors ensure a solid, high-amp connection for various applications.
The XT90 connectors offer a tight fit, minimizing resistance and allowing more power to flow from the pack to the power system compared to other plugs on the market. The molded housing keeps the connectors aligned for easy plugging and unplugging.
Don't compromise your high-amp power system; upgrade to XT90 connectors today!
* Images are for illustration only; actual product may vary.
