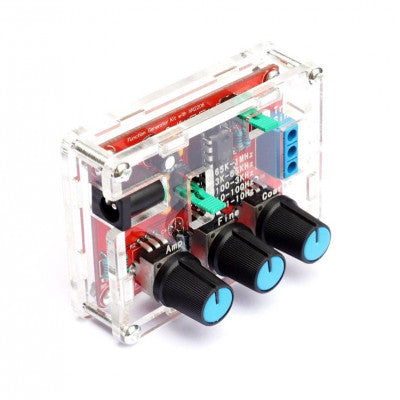

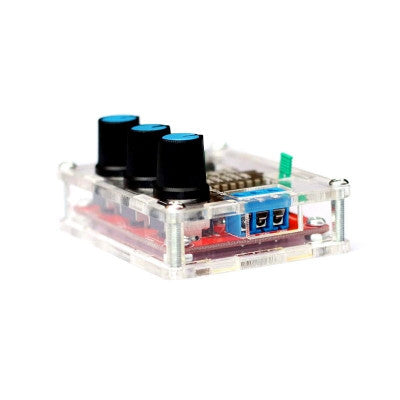

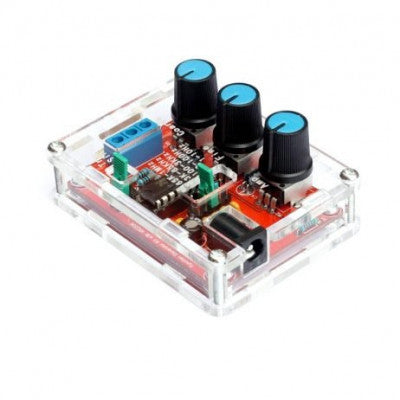

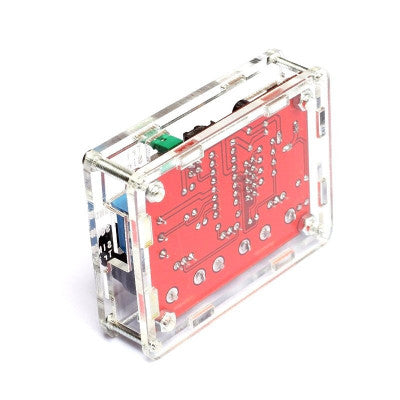

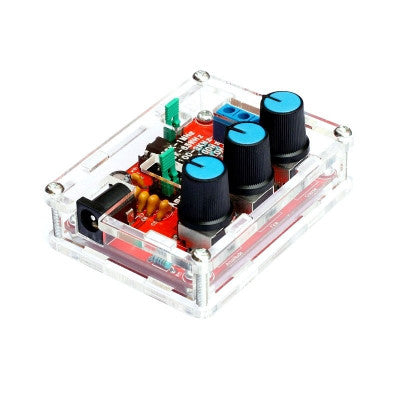

Function Generator Kit
A pre-soldered kit with a compatible case for generating various waveforms.
- Model: XR2206
- Operating Voltage (VDC): 9-12
- Operating Frequency: 1Hz-1MHz

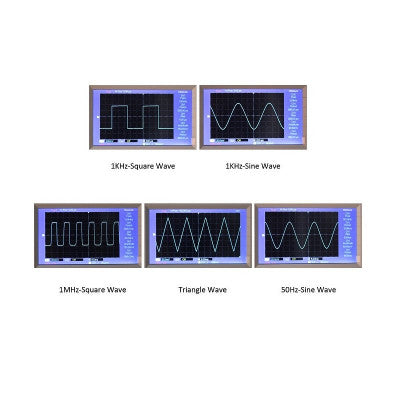

- Supported Waveforms: Sine, Square, Triangle
- Amplitude of Waveform: 0-3VDC
- Distortion: Less than 1%
- Flatness: +0.005dB
- Shipment Weight: 0.08 kg
Features:
- High-Resolution Signal Generator
- Can Generate Sine/Triangle/Square Waves
- Adjustable Frequency and Amplitude
- Coarse and Fine Tuning for Frequency Adjustment
This function generator kit comes pre-soldered and includes a compatible acrylic case for the signal generator. It operates on a supply voltage ranging from 9V to 12VDC and can generate square, sine, and triangle waveforms with frequencies between 1Hz to 1MHz. The amplitude of the waveforms can be adjusted within the range of 0-3VDC.

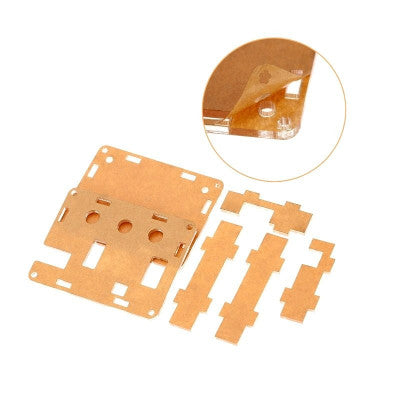

Package Includes: 1 x XR2206 High Precision Signal Generator, 1 x Acrylic Case For Signal Generator
* Images are for illustration only; actual product may vary.
