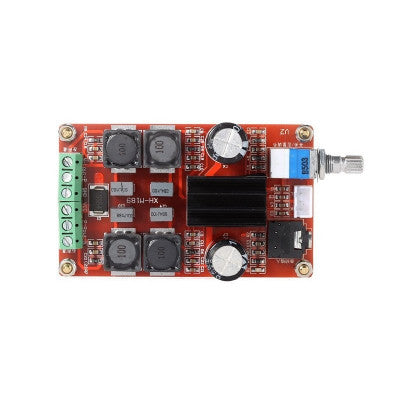

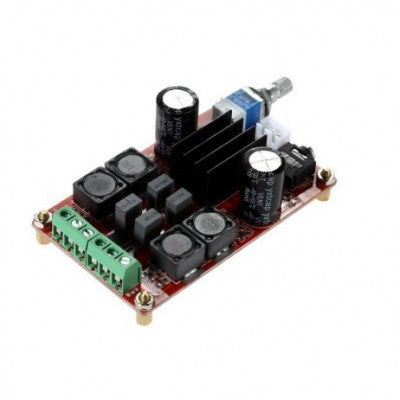

TPA3116D2 XH-M189 Dual Channel Digital Power Amplifier Board
A high-efficiency class D audio power amplifier with TPA3116D2 core technology.
- Operating Voltage Range: 12V to 24V
- Output Power: 2x50W
- Signal to Noise Ratio: 100db
- Length (mm): 83
- Width (mm): 50
- Height (mm): 20
- Weight (gm): 68
Features:
- Strong TPA3116D2 chip for low idle loss
- Front-facing IC for improved input sensitivity
- Can be used for various audio setups
- Loud sound with excellent sound quality
This newly designed digital audio amplifier board is practical to install and use, featuring a high-efficiency class D audio power amplifier with the latest TPA3116D2 core technology. The BTL bridge circuit ensures improved efficiency. The amplifier board operates on a dynamic power supply range from 12V to 24V, with high efficiency and small quiescent current. It also includes perfect protection functions such as overvoltage protection and output current limit.
Note: This product is available in two different variants (XH-M189 and HW 304) with the same functionality; we will ship it randomly.
There are no solder joints on the back of the circuit board, ensuring a secure connection between chip capacitors and the solder board, eliminating the possibility of a short circuit.
* Images are for illustration only; actual product may vary.
