XBee ZB Embedded SMT RF Module
Cost-effective wireless connectivity for ZigBee mesh networks
- Communication Protocol: ZigBee PRO 2007
- Operating Voltage (VDC): 2.1 ~ 3.6
- Transmit Current (mA): 33
- Receive Current (mA): 28
- Transmit Power (dBm): 5
- Interface: UART, SPI
- Operating Temperature Range (C): -40 to 85
- Indoor/Urban Range (m): 60
- I/O: 15
- Length (mm): 33.65
- Width (mm): 22
- Height (mm): 4
- Weight (gm): 4
Top Features:
- Interoperability with ZigBee devices from other vendors
- Firmware upgrades via UART, SPI, or over the air
- Supports binding and multicasting for easy integration into Home Automation
- SMT form factor with side Castellations for easy soldering
XBee ZB embedded SMT RF modules offer seamless wireless connectivity for end-point devices in ZigBee mesh networks. With no configuration needed, users can set up their network quickly. Programmable versions simplify customizing ZigBee applications, making it accessible even without wireless design expertise. Enjoy features like binding and multicasting for effortless integration into Home Automation devices.
Applications include Home Automation, Wireless Sensor Networks, Industrial Control Systems, Embedded Sensing, and Medical Data Collection.

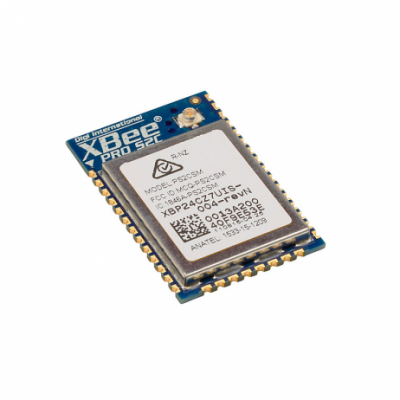

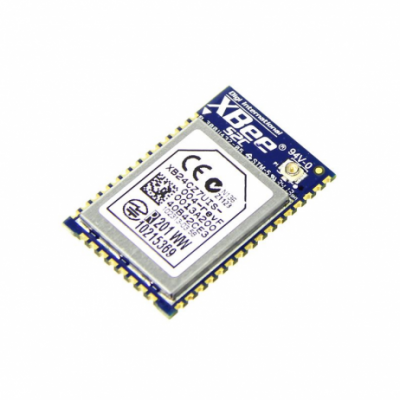

Package Includes: 1 x XBee PRO S2C SMD (U.FL Antenna) Module
* Images are for illustration only; actual product may vary.
