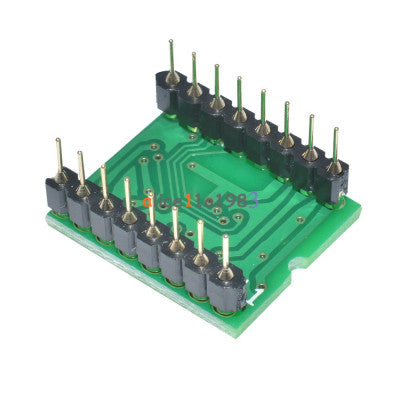

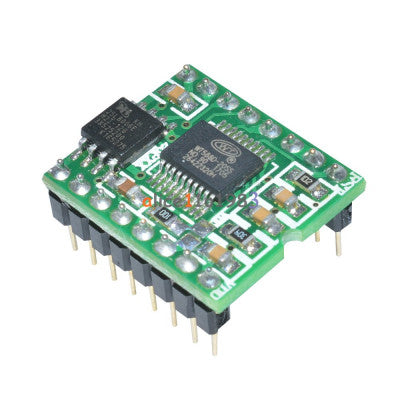

WT588D-16P Voice Sound Audio Player Module
Module for playing MP3 and WAV files on a WT588D microcontroller with built-in memory.
- Input Supply voltage: 2.8 ~ 5.5V
- Current consumption (sleep mode): 10A
- Sampling frequency: 6 ~ 22kHz
- Length: 21mm
- Width: 18.5mm
- Height: 10mm
- Weight: 5g
Features:
- Module package with various chip packaging forms
- 13Bit/DA converter and 12Bit/PWM output
- PWM output can directly drive 0.5W/8 speakers
- Supports loading WAV audio formats
Module for playing MP3 and WAV files on a WT588D microcontroller with built-in memory. Easy-to-use file preparation software, easy download, and simple control of audio playback with decent quality. There is a PWM output for directly connecting a small speaker. On the basis of the module, it is possible to build sound signaling devices, auto-informers, warning devices, answering machines, and much more.
WT588D voice chip, even in the case of electricity, will also be able to download the data to the normal SPI-Flash. Supports MP3 control mode, control mode button, 3 8 key combination control mode, parallel control mode, front-line serial control mode, three-wire serial control mode, and three-wire serial control I/O port expansion output mode. Supports load 6K ~ 22KHz audio sampling rate. Up to 500 segments can be loaded for editing audio.
Package Includes:
- 1 x WT588D-16P Voice Sound Audio Player Module DC 2.8V-5.5V for Arduino
*Images are for illustration only; actual product may vary.
