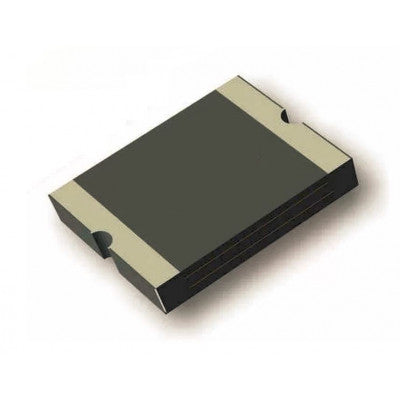

PPTC (Polymer Positive Temperature Coefficient) Fuse 6V 1.75A
PPTC devices with resettable overcurrent protection, ideal for various applications.
- Brand: WEITE
- Resettable PPTC Fuse
- Hold Current: 1.75A
- Maximum Voltage: 6V
- Mounting Type: SMD 1206
- Fuse Type: SMD
Features:
- Compact design saves board space
- RoHS compliant and lead-free
- Halogen-free
- Fast response to fault current
Applications:
- USB port protection - USB 2.0, 3.0 & OTG
- HDMI 1.4 Source protection
- PDAs / digital cameras
- Game console port protection
PPTC Fuses increase resistance as temperature rises, designed to limit unsafe currents while allowing constant safe current levels. The resistance will automatically "reset" when the fault is removed and temperature returns to safe levels.
Using PPTC Fuses reduces warranty, service, and repair costs, making them ideal for situations with frequent overcurrent conditions or where constant uptime is required. They are commonly used in consumer electronics, power line, telecom, I/O port, process control, and medical equipment protection applications.
* Images are for illustration only; actual product may vary.
