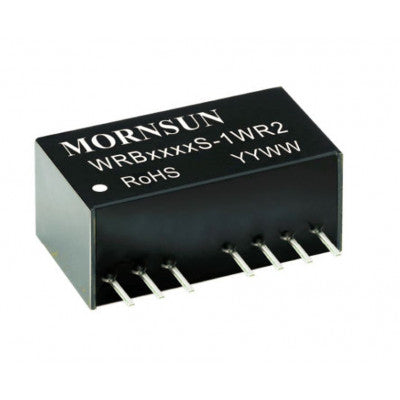

WRB4803S-1WR2 Mornsun 48V to 3.3V DC-DC Converter 1W Power Supply Module
Isolated 3W DC-DC converter with 2:1 input voltage and conventional output
- Input Voltage Range: 36-75V
- Nominal Voltage: 48V
- Output Voltage: 3.3V
- Output Current: 303/15mA
- Wattage: 1W
- Isolation: 1.5kVDC
- Package: SIP
Top Features:
- Ultra compact SIP package
- Wide input voltage range (2:1)
- Operating temperature range: -40°C to +85°C
- Isolation voltage: 1.5kVDC
The WRB4803S-1WR2 series is an isolated 3W DC-DC product with a 2:1 input voltage and conventional output. It comes in a relatively compact SIP-8 plastic package and features high efficiency, operating temperature of -40°C to +85°C, remote control, and continuous short-circuit protection. The smaller size and cost-effective design make it an ideal solution for communication, instruments, and industrial electronics applications.
Package Includes:
1 x WRB4803S-1WR2 Mornsun 48V to 3.3V DC-DC Converter 1W Power Supply Module - Ultra Compact SIP Package
* Images are for illustration only; actual product may vary.
