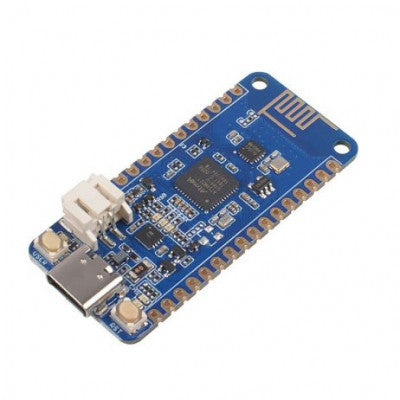

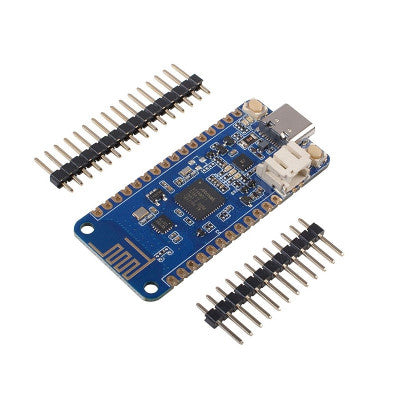

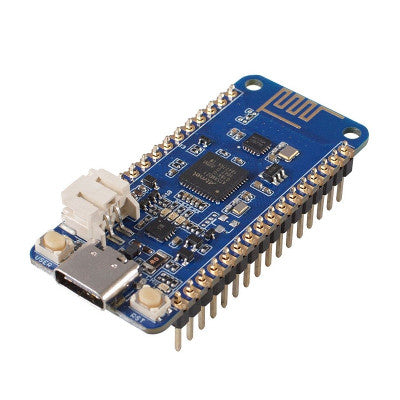

Wio Lite MG126
A cost-effective SAMD21 based development board with onboard MG126 Bluetooth Module.
- Microcontroller: SAM D21
- Digital I/O Pins: 14
- Analog Input Channels: 6
- DC Current per I/O Pin: 40 mA
- IO Input Voltage: 3.3 V
- SRAM: 32 KB
- Flash: 256 KB
- Maximum CPU Frequency: 48 MHz
- Bluetooth Core: MG126
- Frequency Band: 2.4GHz ISM
- Data Rate: 1Mbps air data rate
- Communication with MCU: SPI (Max. 4Mbps)
- Transmitter: Programmable output power: -28 ~ +4 dBm without an external RF PA 20mA at 0dBm output power
- Receiver: Integrated channel filters, -85 dBm sensitivity, Programmable LNA gain
- Antenna: On-board PCB antenna
- Max. Bluetooth Connect Distance: 10 m
Features:
- Arduino Zero Compatible/ Adafruit Feather Compatible
- 2.4GHz ISM band operation with 2MHz channel spacing
- 1Mbps air data rate
- Ultra-low-power
Wio Lite MG126 is a SAMD21 based development board with the MG126 Bluetooth Module. It is compatible with Arduino Zero and Adafruit Feather series, featuring 14 digital pins, 6 analog pins, and various communication ports. The MG126 Bluetooth Core offers a 1Mbps air data rate and can communicate with the MCU at speeds up to 4Mbps via SPI.
The board is equipped with a Type C interface for power and data transmission, along with a JST2.0 Li-Po battery port for portable power options.
MG126, the Bluetooth Core, is a 2.4GHz BLE RF transceiver with configurable registers and ultra-low power consumption. It supports a 1Mbps air data rate and can communicate with the Arduino core at 4Mbps via SPI.
* Images are for illustration only; actual product may vary.
