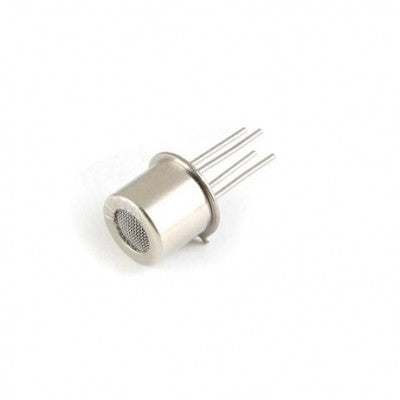

Winsen MP-5-24V C3H8 LPG Propane Flammable Gas Sensor Metal Cap
MP-5 gas sensor for flammable gases with multilayer thick film technology.
- Spec name: Winsen MP-5-24V C3H8 LPG Propane Flammable Gas Sensor Metal Cap
- Gas Type: Flammable gases
- Technology: Multilayer thick film
- Substrate Material: Ceramic Al2O3
- Operating Voltage: 24V
Top Features:
- Lower consumption
- Small size
- Fast response and resume
- Highest sensitivity
MP-5 gas sensor is designed for LPG gases and utilizes a simple circuit to convert conductivity variations into gas concentration signals. The sensor's conductivity increases with higher gas concentrations due to its metal oxide semiconductor material.
The sensor is encapsulated in a metal socket and cap, ensuring stability and long life. It offers easy circuit integration and provides a significant output signal corresponding to the gas concentration.
- Package includes: 1 x MP-5 24V C3H8 LPG Propane Flammable Gas Sensor Metal Cap
Images are for illustration only; actual product may vary.
