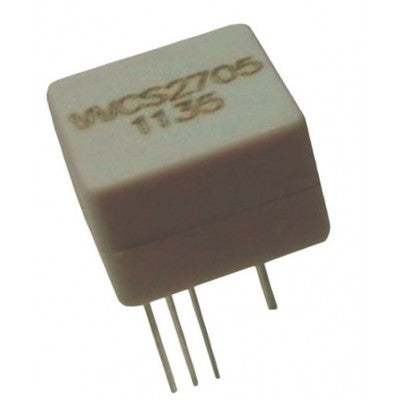

WCS2705 5A Hall Effect Linear Current Sensor
An economical and precise current sensing solution for various systems
- Measurable Current Range: +5A
- Low noise analog signal path
- 8.3 ohm internal conductor resistance
- Output voltage proportional to AC and DC current
- Min. sensing current: 0~5.0A at 5V voltage supply
- High Sensitivity: 260 mV/A
- Wide operating voltage range: 3.0~12 V
- Low operating current: 3mA
Top Features:
- Measurable Current Range: +5A
- Low noise analog signal path
- Output voltage proportional to current
- High Sensitivity: 260 mV/A
The WCS2705 5A Hall Effect Linear Current Sensor provides an economical and precise solution for both DC and AC current sensing in industrial, commercial, and communications systems. The unique package design allows for easy implementation by the customer.
Typical applications include motor control, load detection and management, over-current fault detection, and intelligent power management systems.
Package Includes: 1 x WCS2705 - 5A Hall Effect Base Linear Current Sensor
Images are for illustration only; actual product may vary.
