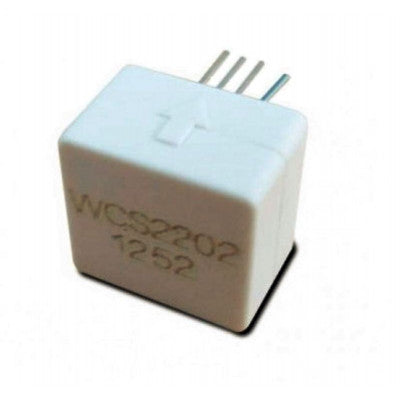

WCS2202 Hall Effect Current Sensor
An economical and precise solution for AC and DC current sensing.
- Built-in AC to DC rectifier circuit: Yes
- Internal conductor resistance: 8.3 m?
- Output voltage proportional to AC and DC current: Yes
- Min. sensing current: 0~3.0A at 5V voltage supply
- High Sensitivity: 525 mV/A
- Wide operating voltage range: 3.0~12 V
- Low operating current: 3.3 mA
- Nearly zero magnetic hysteresis: Yes
Top Features:
- AC to DC rectifier built-in
- Proportional output voltage
- High Sensitivity 525 mV/A
- Wide voltage range 3.0~12V
WCS2202 Hall Effect Current Sensor provides an economical and precise solution for both AC and DC current sensing in industrial, commercial, and communications systems. The unique package design allows for easy customer implementation. Typical applications include motor control, load detection and management, over-current fault detection, and intelligent power management systems.
The sensor features a built-in AC to DC rectifier circuit, eliminating the need for additional signal conditioning. It consists of a precise, low-temperature drift linear hall sensor IC with temperature compensation and a current path with 8.3 m? internal conductor resistance, effectively reducing power loss and operating temperature while increasing reliability. The applied current generates a magnetic field sensed by the Hall IC, producing a proportional rectified DC voltage. The sensor's terminals are electrically 1,000V isolated from the conductive path, allowing for use in applications requiring electrical isolation without additional costly techniques.
Package Includes:
- 1 x WCS2202 - 3A Hall Effect Base Linear AC Current Sensor
