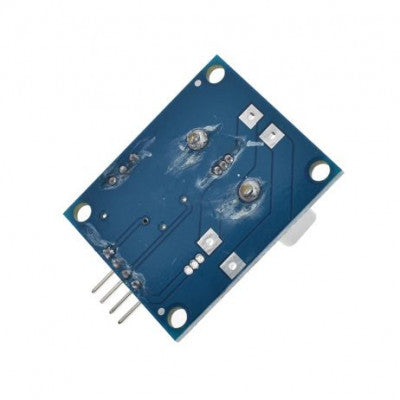

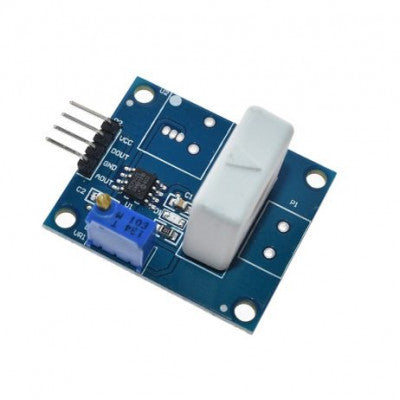

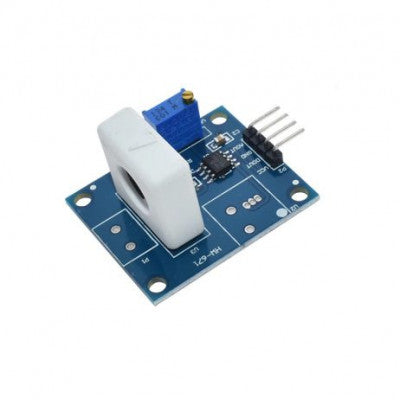

WCS1700 Hall Current Sensor Module
Economical and precise current sensing solution for industrial and commercial systems.
- Main chip: LM393 op-amp
- Working voltage: DC-DC 5V
- Pass-Through Wire Diameter: 9mm
- Output Current Sink: 0.4mA
- Current detection resolution: 32mV / A
- Length(mm): 5
- Width(mm): 5
- Height(mm): 4
- Weight(g): 10
Top Features:
- 32mV/A current detection resolution
- Adjustable overcurrent signal indication
- Resolution of 3A
- Mounting holes for easy installation

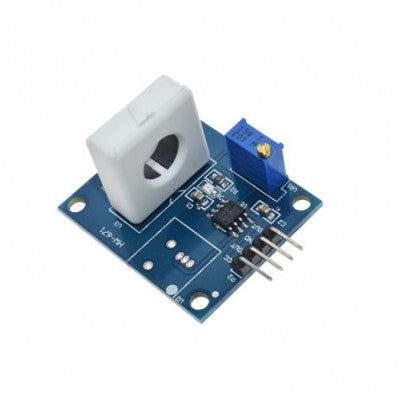

The WCS1700 current sensor module offers a precise and low-temperature drift linear hall sensor IC with temperature compensation circuit. It allows for easy implementation without altering the original system layout. By passing an electric wire through the 9.0mm diameter through-hole, users can measure passing current without disruption.
The integrated Hall IC senses the magnetic field generated by the current passing through the hole and converts it into a proportional voltage. This design enables system designers to monitor current flow without making any layout changes.
Applications of the WCS1700 include motor control, load detection, over-current fault detection, and intelligent power management systems.
Package Includes: 1 x WCS1700 Hall Current Sensor Module with Over Current Protection
