WCS1700
A precise current sensor with a diameter 9.0mm through hole design.
- Supply Current: 3.5~6.0 mA
- Supply Voltage: 3.0 ~12 V
- Bandwidth: 23 kHz
- Conductor Through Hole: 9.0mm
- Sensitivity: 33mV/A
- Temperature Drift: +/-0.5mV/C
- Operating Temperature: -20~125°C
- Zero Current Volt: 2.5V

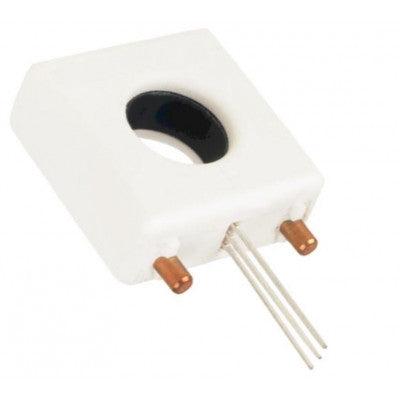

- Package Includes: 1 x WCS1700 - 70A Hall Effect Base Linear Current Sensor
Top Features:
- Precise current sensing
- Temperature compensation circuit
- Integrated Hall IC
- Proportional voltage output
The WCS1700 comprises a precise, low-temperature drift linear hall sensor IC with a temperature compensation circuit and a 9.0mm diameter through hole. The system allows the use of the system’s electric wire by passing it through the hole to measure passing current. This innovative design enables system designers to monitor any current path without altering the original system layout. Any current passing through the hole generates a magnetic field sensed by the integrated Hall IC and converted into a proportional voltage.
