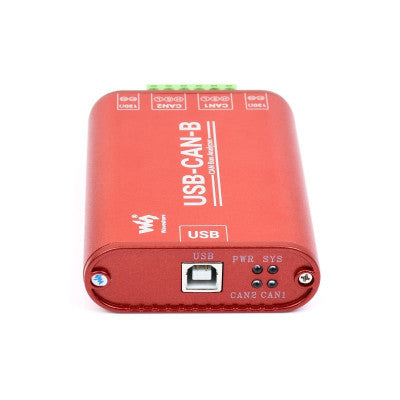

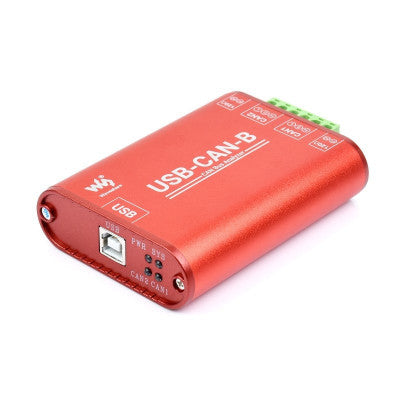

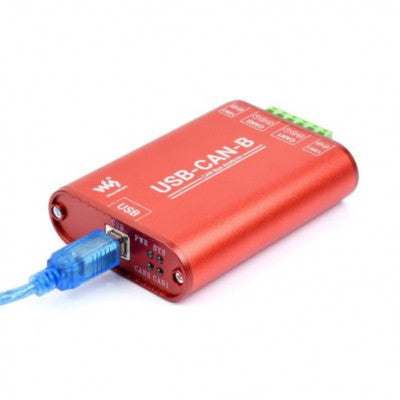

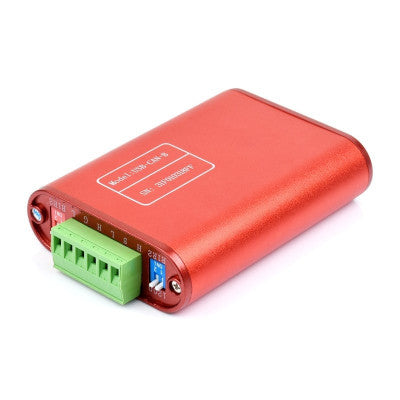

USB To CAN Adapter, Dual-Channel CAN Analyzer, Industrial Isolation
High-speed USB2.0 interface, dual CAN bus interfaces, configurable baud rate
- Interface: High-Speed USB2.0 (Compatible with USB 1.1 and USB 3.0)
- CAN Channels: Dual-channel with two-way transmission
- Baud Rate: Configurable range of 10Kbps-1Mbps
- Protocols: CAN 2.0A, CAN 2.0B, CANOpen, SAE1939, DeviceNet, ICAN, ISO 15765
- Secondary Development: Examples provided for C++Builder, C#, VC, VB, VB.NET, Delphi, LabVIEW, LabWindows/CVI, Q, Matlab, Python/Python-can, Qt samples under Linux
Top Features:
- Compact size and easy to use
- Dual independent channels with electrical isolation
- Supports Windows and Linux systems
- Comes with drivers for easy installation
It can work independently without affecting each other and supports baud rate calculation, auto-detection, and setting via the configuration tool. The USB-CAN adapter can be connected to a PC or industrial control host via a USB port for transceiver control.
Package Includes:
- USB-CAN Adapter

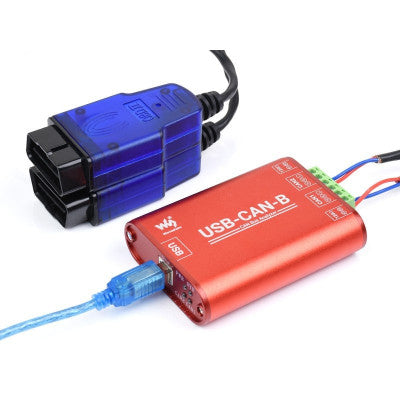

- Car OBD Adapter x2
- USB Type A Plug to Type B Plug Cable
- 4pin Cable
- Screwdriver
Images are for illustration only; actual product may vary.
