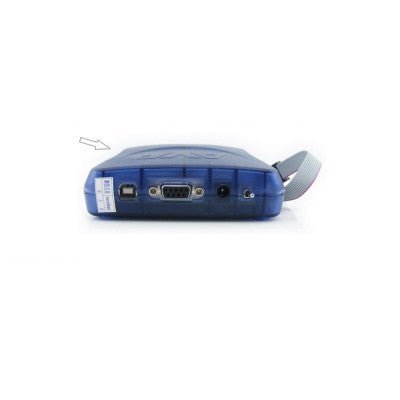

Waveshare USB AVR JTAGICE XPII AVR Programmers & Debuggers
Programmer & Debugger compatible with JTAGICE mkII from ATMEL
- Supports On-Chip Debugging and programming: Yes
- MCU Compatibility: All AVR and AVR32 MCUs with On-Chip Debug capability, including XMEGA devices
- Supports AVR Studio Versions: 4/5/6 or higher (delivered with firmware for AVR Studio 5, updatable)
- Programming Interface: Flash, EEPROM, fuses, and lock bits (not debugWIRE)
- Interfaces: USB 1.1, RS232, JTAG, PDI, debugWIRE
- Power Supply: Regulated 9-15V DC or USB bus
- Target Operating Voltage Range: 2.1V to 5.5V
Features:
- Supports debugging of all AVR and AVR32 devices with OCD
- Supports programming of all AVR and AVR32 devices with OCD
- On-Chip Debugging: Run, Single step, Breakpoints, etc.
- Source Level Debugging for Assembler and HLL
Package Includes:
- 1 x USB AVR JTAGICE XPII
- 1 x USB Cable
- 1 x RS-232 serial cable
- 1 x Spare 10-pin cable
- 1 x 10-pin (JTAG) to 6-pin (SPI) probe adapter cable
- 1 x 10-pin (JTAG) to 10-pin (SPI) probe adapter cable
- 1 x 10-wire multicolor custom connector cable
* Images are for illustration only; actual product may vary.
