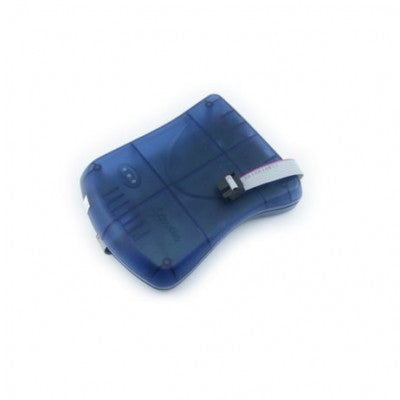

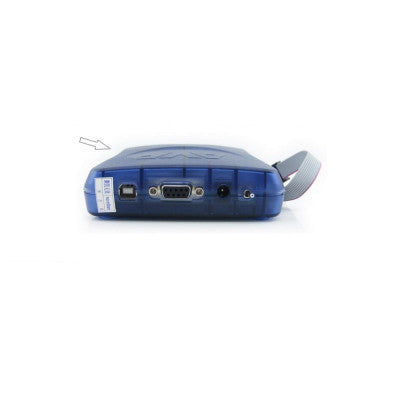

Waveshare USB AVR JTAGICE XPII AVR Programmers & Debuggers
Debugger & Programmer, compatible with JTAGICE mkII from ATMEL
- Supports On-Chip Debugging and programming: Yes
- Supports all AVR and AVR32 MCUs with On-Chip Debug capability, including XMEGA devices: Yes
- Supports AVR Studio 4/5/6 or higher version: Yes (delivered with firmware for AVR Studio 5, can be updated to support other AVR Studio versions)
- Programming Interface: USB 1.1 and RS232 Interface to PC for Programming and Control
- Power Supply: Regulated Power Supply for 9-15V DC Power, Can be powered from the USB bus
- Target operating voltage range: 2.1V to 5.5V
Features:
- Supports debugging of all AVR and AVR32 devices with OCD
- Supports programming of all AVR and AVR32 devices with OCD
- On-Chip Debugging: Run, Single step, Breakpoints, etc.
- Supports Assembler and HLL Source Level Debugging
Package Includes:
- 1 x USB AVR JTAGICE XPII
- 1 x USB Cable
- 1 x RS-232 serial cable
- 1 x Spare 10-pin cable
- 1 x 10-pin (JTAG) to 6-pin (SPI) probe adapter cable
- 1 x 10-pin (JTAG) to 10-pin (SPI) probe adapter cable
- 1 x 10-wire multicolor custom connector cable
* Images are for illustration only; actual product may vary.
