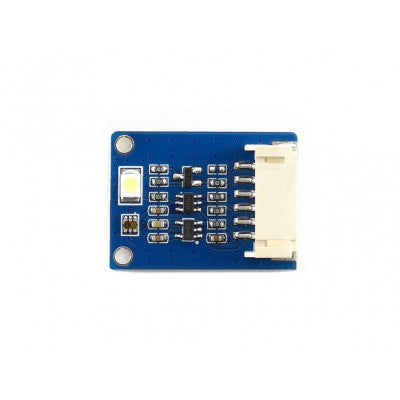

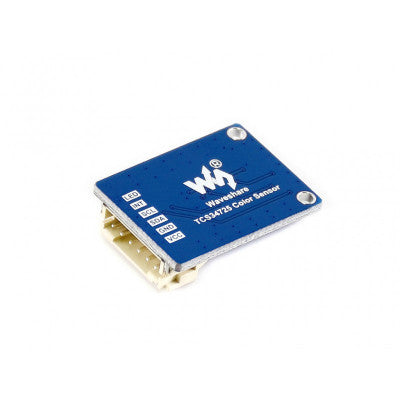

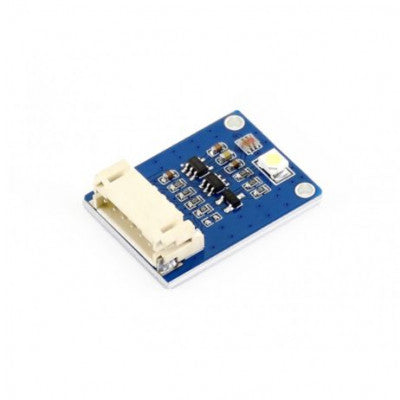

Color Sensor Module TCS34725
A high-sensitivity color sensor module with RGB data output and light intensity measurement via I2C interface.
- Sensor: TCS34725FN
- Communication interface: I2C
- Operating voltage: 3.3V/5V
- Dimension: 27mm x 20mm
- Resolution: 4-ch RGBC, 16-bit per ch
- Recommended measuring distance: 2mm
Features:
- High sensitivity and wide dynamic range
- Outputs RGB data without white balance
- Integrates IR blocking filter
- Supports light intensity interrupt output
This color sensor module is based on the TCS34725 sensor and features LED backlight and a built-in IR filter. It can be used with any microcontroller equipped with an I2C interface, operating within the voltage range of 3.3V to 5V. The sensor allows for color detection from the RGB palette and blocks unwanted components in the infrared radiation range. The onboard LED indicator illuminates the detected surface.
The TCS34725 sensor is ideal for color sensing applications, providing digital return of red, green, blue (RGB), and clear light sensing values. Its high sensitivity, wide dynamic range, and IR blocking filter make it suitable for use under varying lighting conditions and through attenuating materials.
Application:
- Sorting by color
- Ambient light sensing and calibration
- Product color identification and classification
Package Includes:
- 1 x TCS34725 Color Sensor

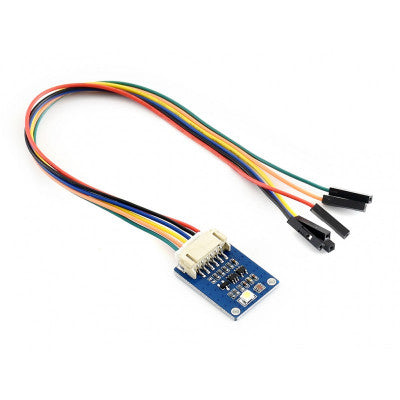

- 1 x PH2.0 6PIN wire 20cm
* Images are for illustration only; actual product may vary.
