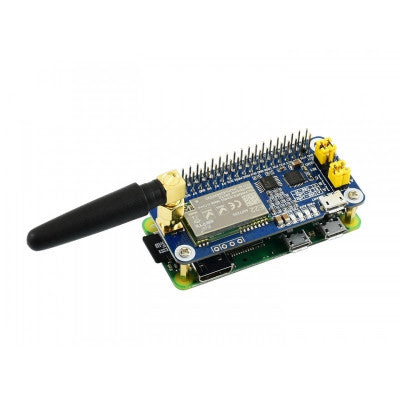

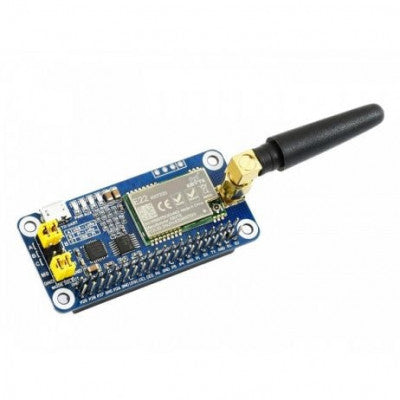

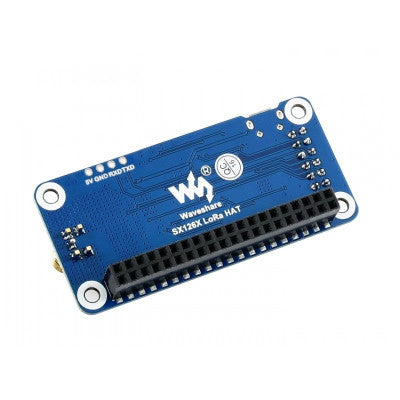

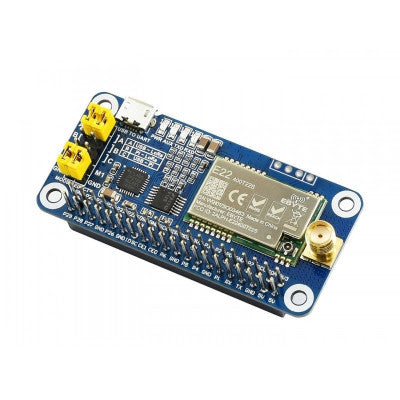

Waveshare SX1268 LoRa HAT for Raspberry Pi 433MHz Frequency Band
Long-range LoRa communication module for Raspberry Pi with up to 5km transmission distance
- Receive Current: 11mA
- Sleep Current: 2uA (LoRa module deep sleep)
- Max. Transmit Power: 22.0dBm (10, 13, 17, 22dBm Selectable)
- Transmit Length: 240 Bytes (32, 64, 128, 240 Bytes Selectable)
- Buffer: 1000 Bytes
- Working bands: 410.125 ~ 493.125MHz
- Receive Sensitivity: 147dBm @ 0.3Kbps (On-air)
- Interface: UART Range 5KM (Sunny day; open area; Antenna: AUX 5dBi, Height 2.5m; Air Speed: 2.4kbps)
- Maximum Working Voltage (V): 5
- Logic Input (V): 3.3
- Working Temperature Range (°C): 40 to 85
- Length (mm): 65
- Width (mm): 30.5
- Height (mm): 25
- Weight (gm): 69
Features:
- Standard Raspberry Pi 40PIN GPIO extension header
- CP2102 USB TO UART converter for serial debugging
- UART control interface for connecting host boards like Arduino/STM32
- LoRa spread spectrum modulation technology for longer communication distance
This Waveshare SX1268 LoRa HAT for Raspberry Pi 433MHz Frequency Band is equipped with the SX1268 LoRa module, 74HC125V voltage level translator, CP2102 USB TO UART converter, and more. It supports various applications such as industrial control, smart home, and data collection.
The module features onboard indicators for UART RX/TX, auxiliary, and power, making it easy to check the module status. It also supports auto multi-level repeating for ultra-long-range communication and low power consumption features like deep sleeping and Wake on Radio.
With customizable communication key and LBT support, this LoRa HAT ensures improved security and success ratio under extreme environments. It also allows for wireless parameter configuration and supports fixed-point transmission and signal channel monitoring.

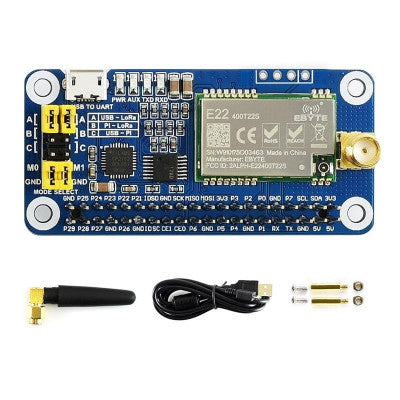

Package Includes: 1 x SX1268 433M LoRa HAT, 1 x USB type A plug to micro plug cable, 1 x 433MHz antenna
* Images are for illustration only; actual product may vary.
