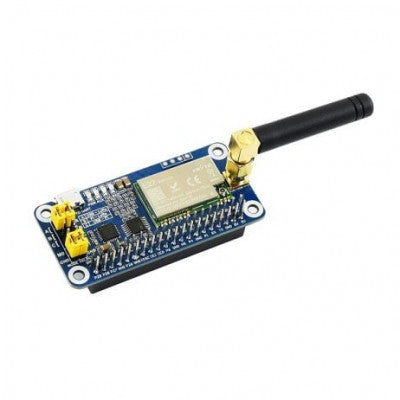

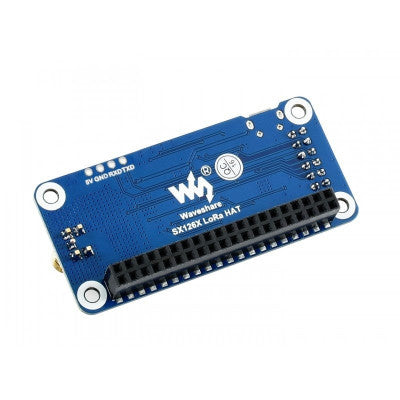

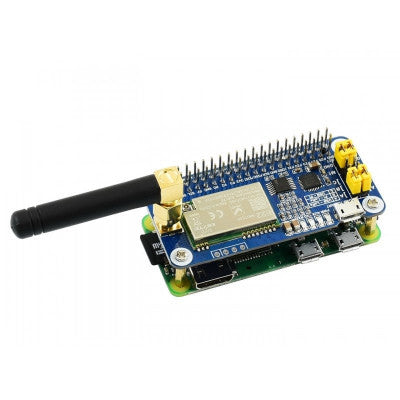

Raspberry Pi LoRa HAT based on SX1262
Long-range LoRa HAT for Raspberry Pi with 915MHz frequency band

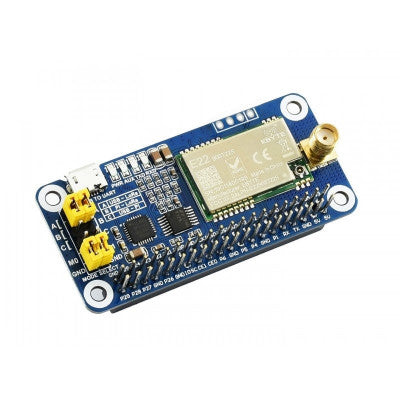

- On Board: SX1262 LoRa module, 74HC125V voltage level translator, CP2102 USB TO UART converter, Raspberry Pi GPIO connector, USB TO UART port, UART header, SMA antenna connector, IPEX antenna connector, Indicators (RXD/TXD, AUX, PWR), UART selection jumpers, LoRa mode selection jumpers
Features:
- Standard Raspberry Pi 40PIN GPIO extension header
- Onboard CP2102 USB TO UART converter for serial debugging
- UART control interface for connecting host boards like Arduino/STM32
- LoRa spread spectrum modulation technology for longer communication distance
This Raspberry Pi LoRa HAT based on SX1262 offers a communication distance of up to 5km through the serial port. It utilizes new generation LoRa spread spectrum modulation technology for long-range communication. The module supports auto repeating for even longer transmission distances. With features like Wake on Radio, wireless config, carrier sensing, and communication key, this HAT provides enhanced functionality.
Compared to normal LoRa modules, the SX1262 LoRa HAT achieves longer communication distances, higher rates, lower consumption, better safety, and anti-interference capabilities. It is suitable for various applications including industrial control, smart home, and data collection.

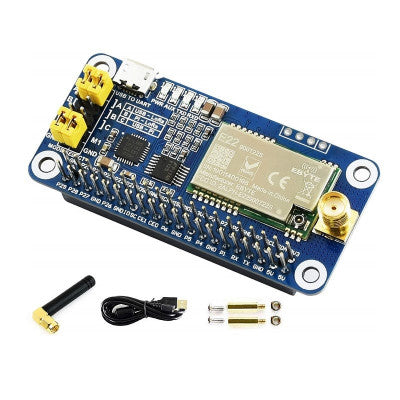

Package Includes:
- 1 x SX1262 915M LoRa HAT
- 1 x USB type A plug to micro plug cable
- 1 x 915MHz antenna
* Images are for illustration only; actual product may vary.
