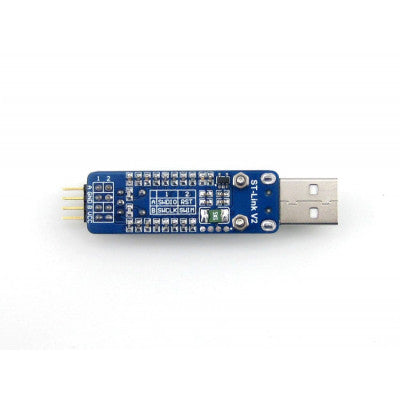

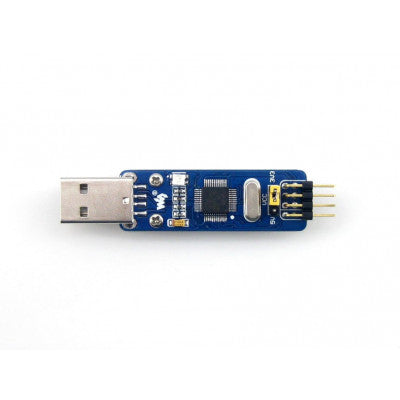

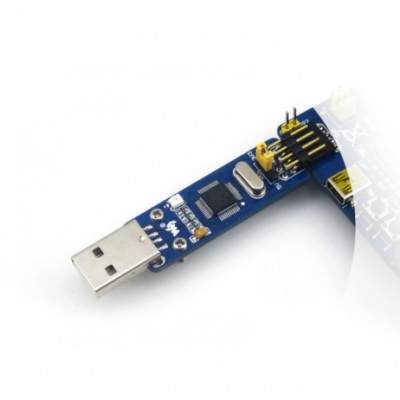

STM Programmers ST-LINK/V2 (mini)
An extremely low-cost solution for in-circuit debugger/programmer for STM8 and STM32.
- Applications: The ST-LINK/V2 (mini) should be connected to the STM8 application via the SWIM interface.
Specifications:
- DEBUGGER PIN: TARGET BOARD PIN
- VCC: MCU VCC
- STM8 VCC: STM8 VCC
- SWIM: MCU SWIM
- STM8 SWIM PIN: SWIM PIN
- GND: GND
- STM8 GND: GND
- RST: MCU RESET
- STM8 RESET PIN: RESET PIN
- DEBUGGER PIN: TARGET BOARD PIN
- VCC: MCU VCC
- STM32 VCC: STM32 VCC
- STUDIO: MCU SWDIO
- STM32 SWD SWDIO: SWDIO
- GND: GND
- STM32 GND: GND
- SWCLK: MCU SWCLK
- STM32 SWD SWCLK: SWCLK
Top Features:
- 500mA self-recovery fuse for protection
- Dual voltage output (3.3V/5V) for easy debugging/programming
- Standard USB interface for direct PC connection
- Upgradable firmware for future device support
Package Includes: 1 ST-Link/V2 (mini), 1 x 4-pin custom connector cable, 1 x USB type A plug to receptacle cable
* Images are for illustration only; actual product may vary.
