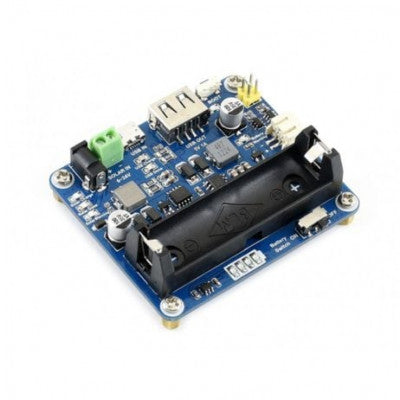

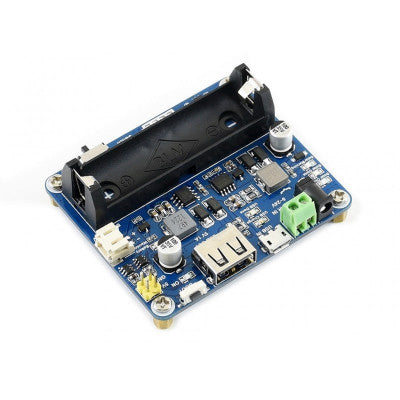

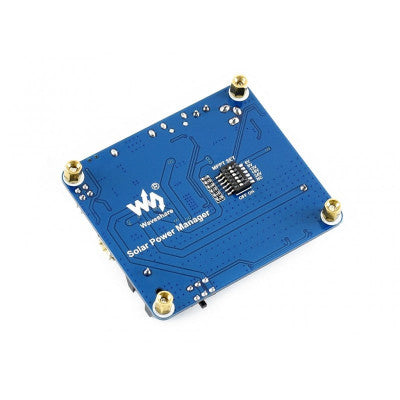

Solar Power Management Module
Efficient solar panel charging with MPPT function and multi-protection circuits.
- Input Voltage: 6V~24V
- Output: 5V/1A
-
Features:
- MPPT function for maximum solar panel efficiency
- Solar panel/USB battery charging
- MPPT SET switch for improved charging efficiency
- Multiple output interfaces
- Compatibility: 3.7V rechargeable Li battery
-
Protection Circuits:
- Overcharge protection
- Over-discharge protection
- Reverse protection
- Overheat protection
- Overcurrent protection
This solar power management module is designed to efficiently charge 3.7V rechargeable Li batteries using solar panels or USB connections. With MPPT function and multi-protection circuits, it ensures high efficiency, stability, and safety for various projects including solar-powered IoT applications.

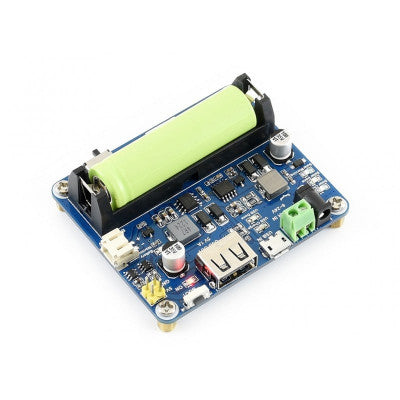

The module includes an MPPT SET switch to optimize charging efficiency, two 5V output interfaces (pin headers and USB port), and onboard capacitors for stable performance. It also features a 14500 battery holder and PH2.0 battery connector for versatile battery connections.
LED indicators are provided for monitoring the status of the solar panel and battery, while the multiple protection circuits offer protection against overcharging, over-discharging, reverse polarity, overheating, and overcurrent situations.
* Images are for illustration only; actual product may vary.
