SIM7600E-H 4G HAT
A versatile 4G/3G/2G communication and GNSS positioning module with LTE CAT4 support.
- Supports: LTE CAT4 up to 150Mbps
- Power Consumption: Low
- Connectivity: Computer or Raspberry Pi
-
Features:
- High-speed 4G connection
- Wireless communication
- Telephone calls and SMS
- Global positioning

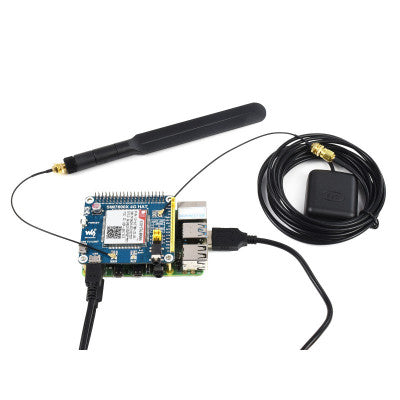

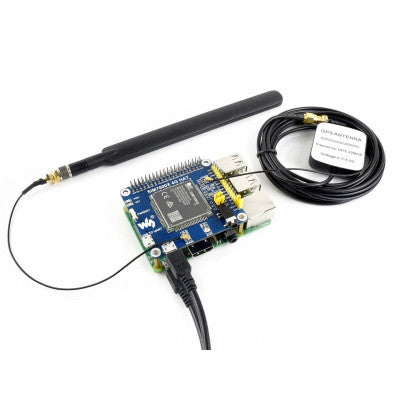

The SIM7600G-H 4G HAT is a versatile module that supports LTE CAT4 for high-speed data transfer. It can be connected to a computer for internet access or attached to a Raspberry Pi for various functionalities like wireless communication, making calls, sending SMS, and GPS positioning.
-
On Board:
- SIM7600G-H
- CP2102 USB to UART converter
- NAU8810 audio decoder
- TXS0108EPWR voltage translator
- MP2128DT power chip
- MP1482 power chip
- Raspberry Pi GPIO header

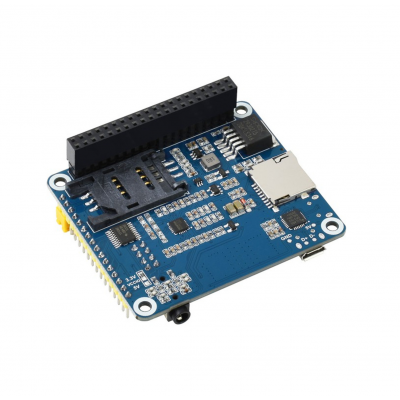

- SIM card slot (1.8V/3V)
- TF card slot
- 3.5mm earphone/mic jack
- USB interface
- USB to UART interface
- MAIN antenna connector
- AUX antenna connector
- GNSS antenna connector
- Power switch
- Network status indicator
- Power indicator
- Operating voltage selection jumper
- UART selection jumper
- PWR configuration jumper
- Flight mode configuration jumper
- USB connector solder pads
- BOOT forced programming solder pads
The SIM7600G-H 4G HAT supports telephony calls and SMS via AT Commands using the onboard audio jack. It also supports various communication protocols like TCP, UDP, FTP, and more based on cloud communication.
-
Package Includes:
- 1 x SIM7600G-H 4G HAT Board

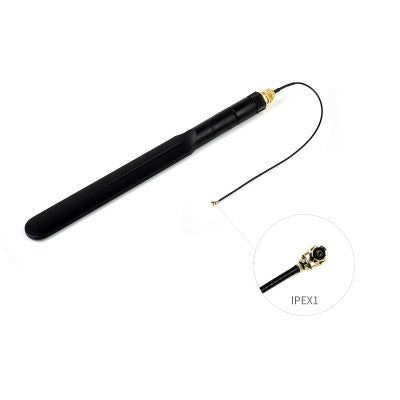

- 1 x 360 foldable LTE Antenna
- 1 x Magnetic base GPS External Antenna (B) with 2-meter cable
- 2 x USB type A plug to Micro plug Cable (Small + Long)
- 1 x RPi screws and Standoff pack (2pcs)
- 2 x Antenna connector
