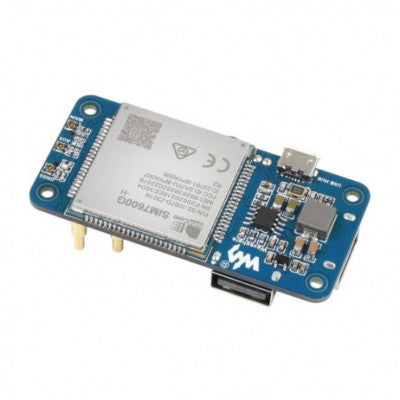

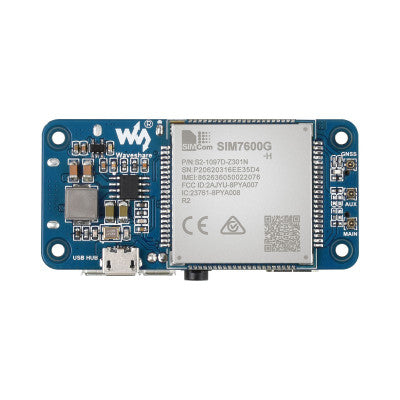

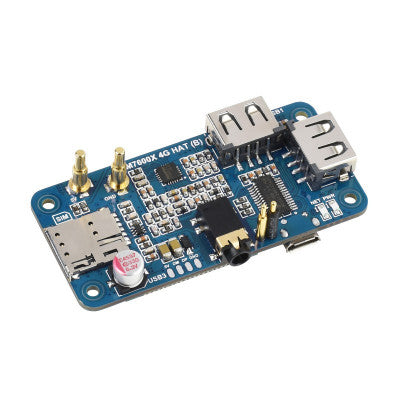

Waveshare SIM7600G-H 4G HAT (B) for Raspberry Pi
LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band
- Global Band: 4G / 3G / 2G
- Connectivity: Pogo pin or Micro USB connector
- Compatibility: Raspberry Pi Zero/Zero W, other Raspberry Pi boards, PC
- Module: SIM7600G-H global band 4G
- Network: 2G/3G/4G with global support
-
Features:
- Suitable For Raspberry Pi / PC
- Global Band 4G / 3G / 2G Support
- USB HUB Feature
- Telephone Call & SMS Support

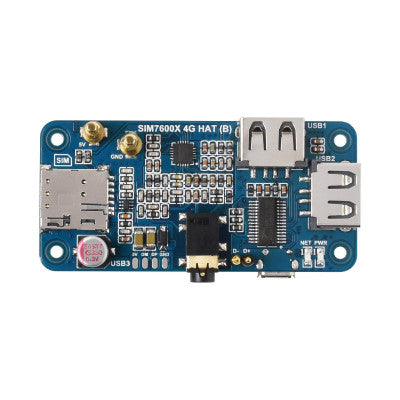

Dedicated Pogo pin for Raspberry Pi Zero/Zero W. Micro USB connector for other Raspberry Pi boards or PC. USB HUB connector for other Raspberry Pi boards or PC, providing USB extension and 4G network access. Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, Bei Dou, Glonass, GALILEO, QZSS, LBS base station positioning. SIM card slot, supports 1.8V/3V SIM card. Onboard audio jack and audio decoder for making telephone calls. 2x LED indicators for monitoring the operating status. Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set). Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT. Comes with development resources and manual (examples for Raspberry Pi).

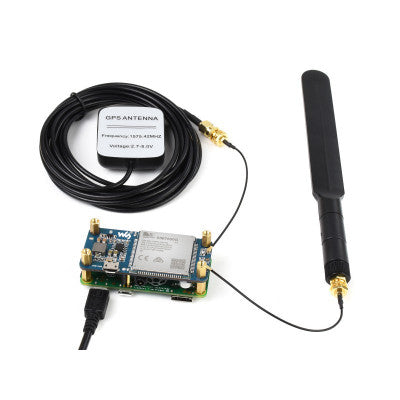

Package includes:
- 1 X SIM7600G-H 4G HAT (B)
- 1 X LTE Antenna
- 1 X GPS Antenna
- 1 X USB-A to micro-B cable
- 1 X Screws pack
Useful link: For Software setup, please follow this tutorial.
* Images are for illustration only; actual product may vary.
