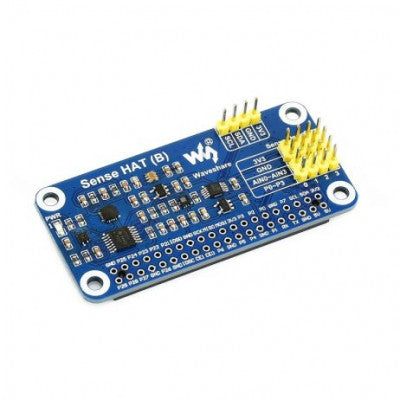

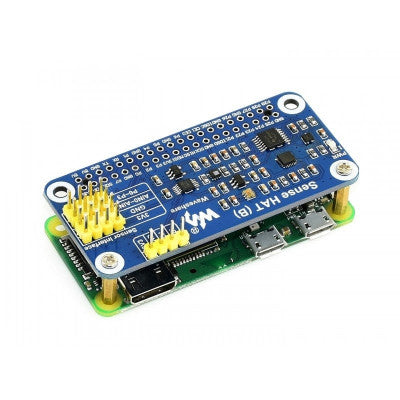

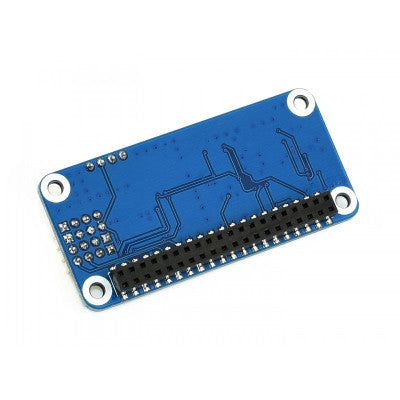

Sense HAT (B)
A powerful sensor HAT specially designed for Raspberry Pi
- Raspberry Pi GPIO connector: for connecting with Raspberry Pi

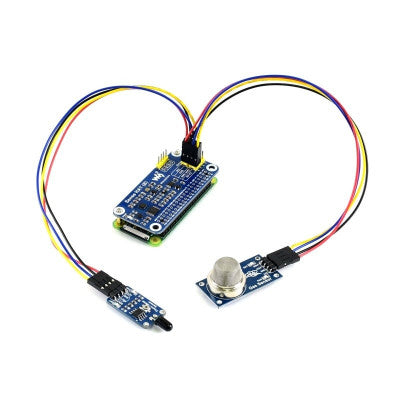

- Sensor Interface: for external sensors
- I2C extension header: for connecting host boards like Arduino/STM32
- ICM-20948: 9-axis movement sensor
- SHTC3: temperature and humidity sensor
- TCS34725: color sensor
- LPS22HB: barometric pressure sensor
- ADS1015: 12-bit ADC
- LSF0204PWR: 4-ch voltage level translator
- RT9193-18: 1.8V linear regulator
- RT9193-33: 3.3V linear regulator
Features:
- Standard Raspberry Pi 40PIN GPIO extension header
- Onboard ICM20948 for movement, orientation, and magnetic detection
- SHTC3 digital temperature and humidity sensor for environment monitoring
- LPS22HB barometric pressure sensor for environment monitoring
The Sense HAT supports various Raspberry Pi projects, measuring speed, temperature, humidity, and direction. Programming is easy with the Python library.

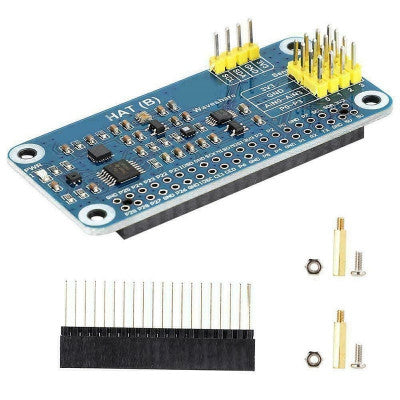

Package Includes:
- 1 x Sense HAT (B)
- 1 x RPi screws pack (2pcs)
- 1 x 2x20PIN female header
Images are for illustration only; actual product may vary.
