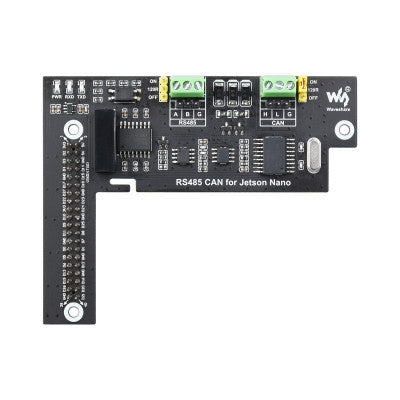

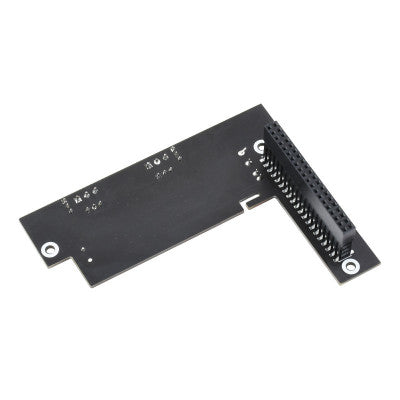

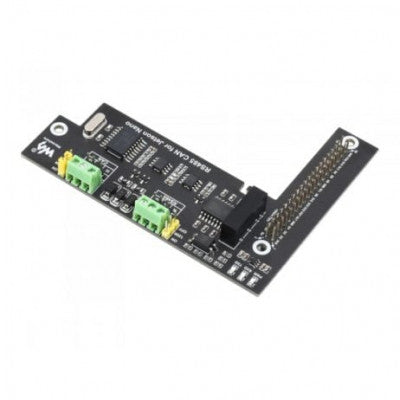

Waveshare RS485 CAN Expansion Board for Jetson Nano
Digital Isolation, Built-In Protection Circuit, Ship Time Lead Time: 1~3 Days
- Ship Time Lead Time: 1~3 Days
- Onboard SM24CANB Transient Voltage Suppressor(TVS): Prevents the damage of static electricity, surge voltage, and transient peak voltage.
- RS485 function: Controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
Features:
- Standard 40PIN GPIO extension header
- Supports direct attaching to Jet-son Nano
- Onboard CAN controller MCP2515 via SPI interface
- Matching with SIT65HVD230DR transceiver
Package Includes: 1 x Waveshare RS485 CAN Expansion Board for Jetson Nano, 1 x Screws package
Images are for illustration only; actual product may vary.
