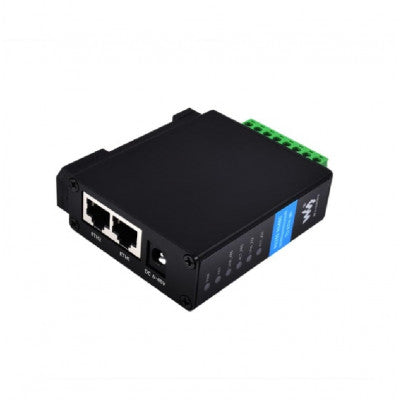

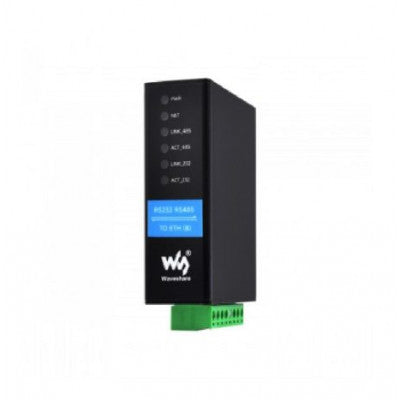

Waveshare RS232 RS485 to RJ45 Ethernet Serial Server
Dual serial port device data acquisitor / IoT gateway for industrial environments.
- Channels: Dual RS232 and RS485
- Ports: Dual Ethernet ports
- Power Supply: DC port (5.5mm outer diameter, 2.1mm inner diameter) and screw terminal
- Mounting: Rail-mount support
- Functions: Serial server, Modbus gateway, MQTT gateway, RS232 RS485 to JSON, etc.
- Package Includes: 1 x Waveshare RS232 RS485 to RJ45 Ethernet Serial Server
Top Features:
- Dual RS232 and RS485 channels
- Dual Ethernet ports
- Remote configuration and management support
- Suited for industrial automation and control
This dual serial port device data acquisitor / IoT gateway is designed for industrial environments. It allows 1-ch RS232 and 1-ch RS485 to work simultaneously without interference, using a single Ethernet cable. The device combines multiple functions such as a serial server, Modbus gateway, MQTT gateway, and RS232 RS485 to JSON conversion. The additional Ethernet port can function as a network switch or for cascading purposes, with optional PoE* support for dual Ethernet ports.
With two power supply methods available (DC port and screw terminal), this device offers flexibility in installation. The compact case with rail-mount support makes it easy to install and cost-effective. Ideal for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring.
This product is a PoE receiver device (PD) that requires connection to a PoE power supply to function properly. It enables simplified setup with a common network port, allowing serial devices to operate on Ethernet networks. The device also supports remote configuration and management, making it a reliable data communication solution for industrial automation and control.
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com or call +91-8095406416.
Images are for illustration only; actual product may vary.
