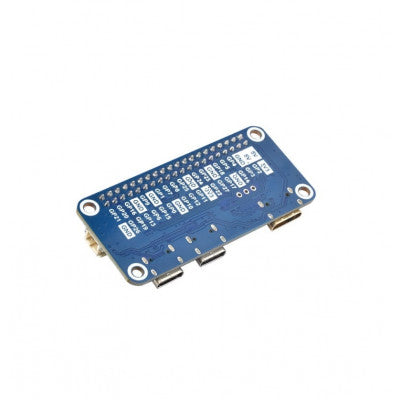

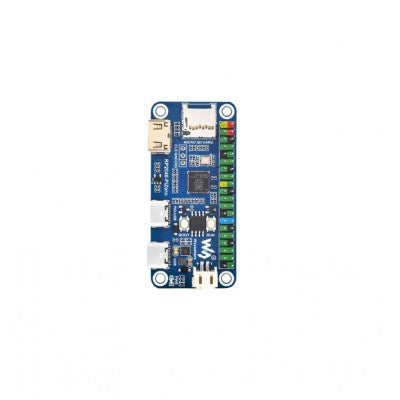

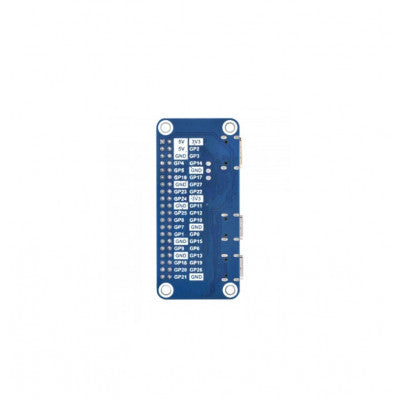

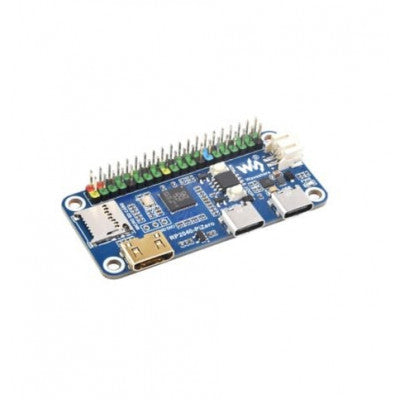

Waveshare RP2040-PiZero Development Board
High-performance microcontroller board with onboard DVI interface and TF card slot
- Processor: Dual-core ARM Cortex M0+
- SRAM: 264KB
- Flash Memory: 16MB
- GPIO Header: Compatible with Raspberry Pi 40PIN GPIO
- Interface: DVI, TF card slot, PIO-USB port
Features:
- Dual-core ARM Cortex M0+ processor
- 264KB SRAM, 16MB Flash memory
- DVI interface for HDMI screen support
- PIO-USB port for USB host/slave
RP2040-PiZero is a high-performance and cost-effective microcontroller board designed by Waveshare, with an onboard DVI interface, TF card slot, and PIO-USB port, compatible with Raspberry Pi 40PIN GPIO header, easy to develop and integrate into the products.
Onboard Lithium battery recharge/discharge header, suitable for mobile scenarios. USB 1.1 with device and host support. Drag-and-drop programming using mass storage over USB. Low-power sleep and dormant modes. 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, 16 controllable PWM channels. Accurate clock and timer on-chip. Temperature sensor. Accelerated floating-point libraries on-chip. 8 Programmable I/O (PIO) state machines for custom peripheral support.
Package Includes:
- 1 x Waveshare RP2040-PiZero Development Board
Images are for illustration only; actual product may vary.
