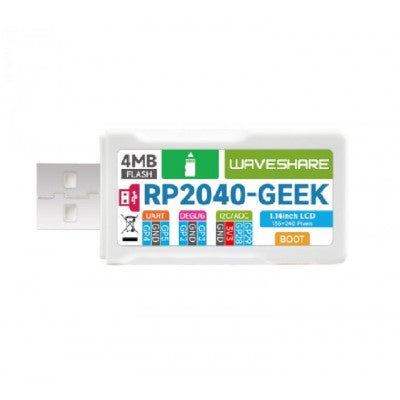

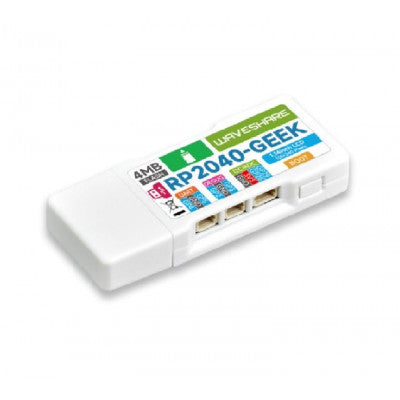

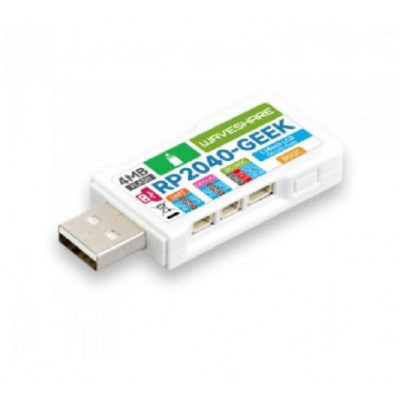

Waveshare RP2040-GEEK Development Board
A geek's development board with RP2040 microcontroller, 1.14-inch LCD, and more
- Spec name: RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Spec name: Onboard 3PIN SWD port for connecting the debugged target board
- Spec name: Standard CMSIS-DAP interface for debugging ARM-based microcontrollers
- Spec name: Works with OpenOCD and other CMSIS-DAP supporting tools
- Spec name: Adopts Raspberry Pi 3PIN Debug Connector Specification
- Spec name: Onboard 3PIN USB to UART bridge
- Spec name: Onboard 4PIN I2C port for testing target board

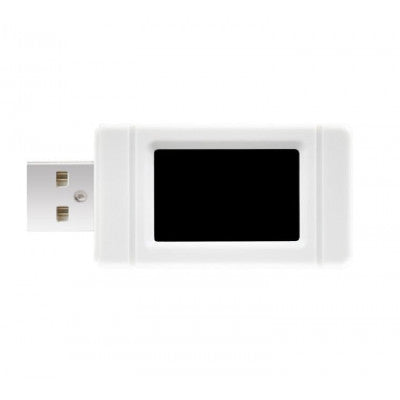

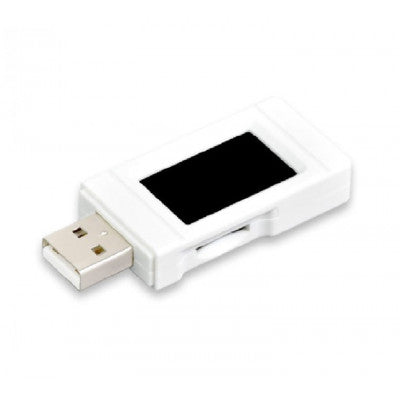

- Spec name: Onboard 1.14-inch 240x135 pixels 65K color IPS LCD display
- Spec name: Equipped with plastic case and cables
- Spec name: Open-source firmware for easy upgrades
Features:
- RP2040 microcontroller chip by Raspberry Pi
- 3PIN SWD port for target board connection
- CMSIS-DAP interface for ARM-based microcontroller debugging
- Works with OpenOCD and CMSIS-DAP tools
Waveshare RP2040-GEEK is a development board designed for geeks, featuring an RP2040 microcontroller, a 1.14-inch 65K color LCD screen, TF card slot, and various other peripherals. It provides different firmware options for the SWD port, UART port, and I2C port, offering versatility in development projects.
The board comes with an onboard USB-A interface and a 1.14-inch LCD screen, making it suitable for a range of projects. It also includes a TF card slot and other peripherals for enhanced functionality.
With the RP2040-GEEK Development Board, you get access to different firmware options for the SWD port, UART port, and I2C port, allowing you to customize the board based on your project requirements.
Whether you are a hobbyist or a professional developer, the Waveshare RP2040-GEEK Development Board offers a versatile platform for your projects.
