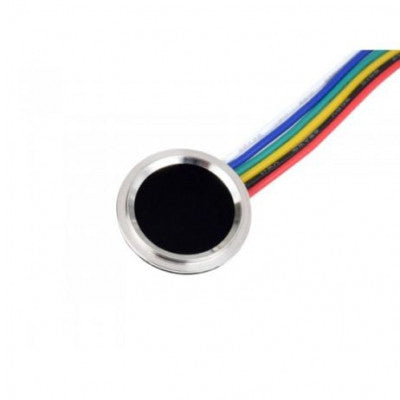

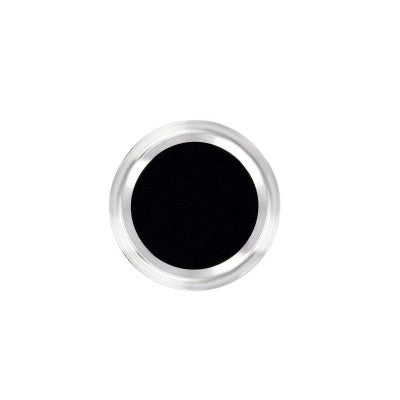

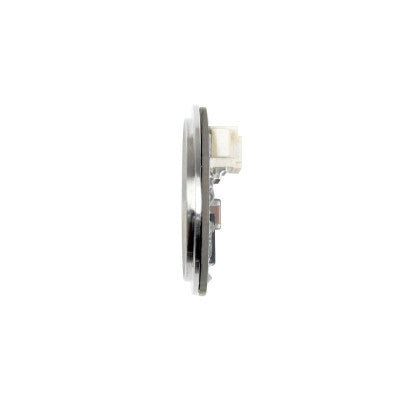

Waveshare Round-Shaped All-In-One Capacitive Fingerprint Sensor (D)
High-performance fingerprint sensor with Cortex processor for small size, high precision applications.
-
Pinouts:
- VIN: Power 3.3V
- GND: ground
- RX: Serial data input (TTL level)
- TX: Serial data output (TTL level)
- RST: Sleep Control Interface
- WAKE: wake-up pin
- Package Includes: 1 x Waveshare Round-Shaped All-In-One Capacitive Fingerprint Sensor (D), Cortex Processor, 360 Verification
Top Features:
- Easy to use with simple commands
- Supports fingerprint enrolling and matching
- Capacitive sensitive detection for fast verification
- 360 Omni-directional verification
Based on a high-performance Cortex processor, combined with the high-security commercial fingerprinting algorithm, the UART Fingerprint Sensor (D) features functionalities like fingerprint enrolling, image acquisition, feature finding, template generating and storing, fingerprint matching, and so on. Without any knowledge about the complicated fingerprinting algorithm, all you need to do is just send some UART commands, to quickly integrate it into fingerprint verification applications which require small size and high precision.

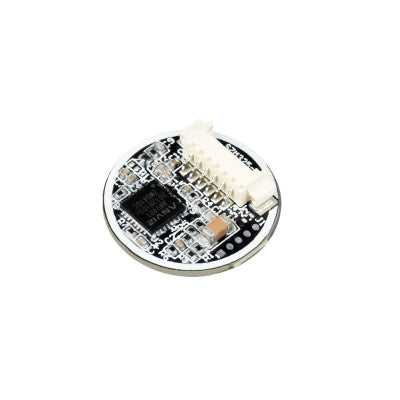

The UART Fingerprint Sensor (D) has onboard UART connector, making it easy to connect with hardware platforms like STM32 and Raspberry Pi. It also features embedded human sensors, enabling automatic sleep mode and wake-up upon touch, thus ensuring lower power consumption.
*Images are for illustration only; actual product may vary.
