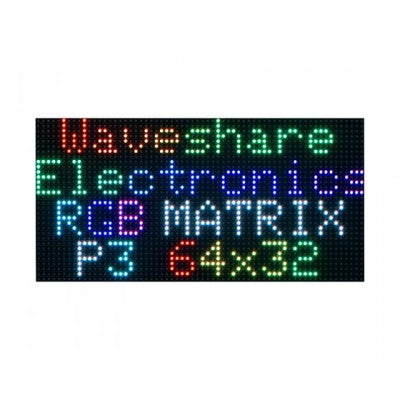

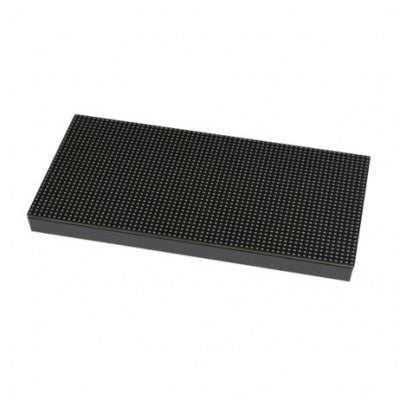

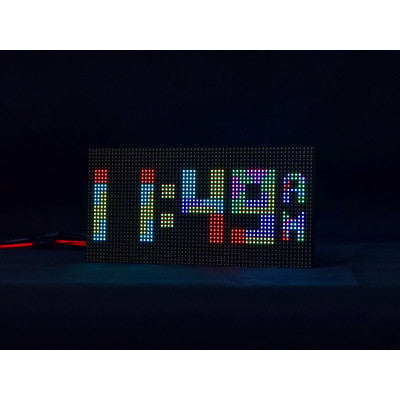

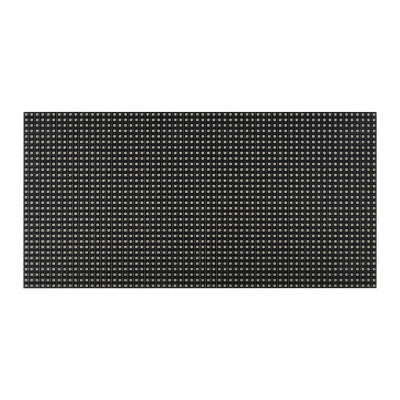

RGB-Matrix-P4-6432 LED Matrix Panel
A full-color LED matrix panel with 2048 individual RGB LEDs for vibrant displays
- Dimensions: 192mm x 96mm
- Pixel: 6432 = 2048 DOTS
- Pitch: 3mm
- Pixel form: 1R1G1B
- Viewing angle: 160
- Control Type: synchronization
- Driving: 1/16 scan
- Header: HUB75
- Power Supply: 5V / 2.5A (VH4 header input)
- Power: 12W
Top Features:
- 2048 individual RGB LEDs for vibrant displays
- Adjustable brightness for customized viewing
- 3mm pitch allows for displaying text, images, or animations
- Open-source development resources for Raspberry Pi, ESP32, Arduino, and more
Maybe be on the wall of tall buildings, maybe on corners of unknown streets, you can always see the dazzling neon light, everywhere in the noisy yet energetic city. Sometimes, looking at these shining screens, you may want to make a unique one, and give it to the beautiful night as a gift. Now, this 6432 RGB LED matrix panel will be the start to make your wish come true. With 2048 individual RGB LEDs, full-color display, and adjustable brightness, this panel with 6432 pixels and 3mm pitch allows displaying text, colorful images, or animations. With dimensions of 192mm x 96mm, it is of moderate size, suitable for DIY desktop display or wall mount display. The onboard two HUB75 headers, one for controller data input and one for output, provide chain support. It also offers open-source development resources and tutorials for use with Raspberry Pi Pico, ESP32, Arduino, and more.
Packages Includes: 1 x Waveshare RGB Full-Color LED Matrix Panel, 4mm Pitch, 6432 Pixels, Adjustable Brightness
* Images are for illustration only; actual product may vary.
