Waveshare RGB Full-Color LED Matrix Panel
A dynamic LED display for text, images, and animations
- Pixel: 6464=4096 DOTS
- Pitch: 3mm
- Pixel form: 1R1G1B
- Viewing angle: 160
- Control Type: synchronization
- Driving: 1/32 scan
- Header: HUB75
- Power supply: 5V / 4A (VH4 header input)
- Power: 20W
- Dimensions: 192mm x 192mm
Features:
- 4096 individual RGB LEDs
- Full-color display
- Adjustable brightness
- 6464 pixels, 3mm pitch
By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?

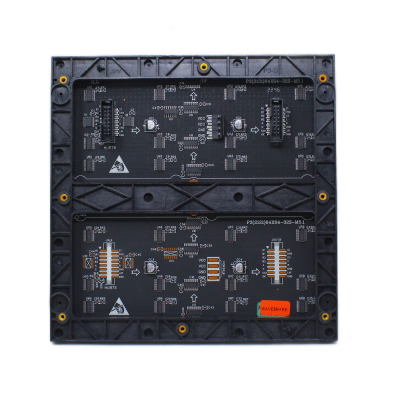

192x192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display. Onboard two HUB75 headers, one for controller data input, one for output, chain support. Provides open source development resources and tutorials, for use with Raspberry Pi, Arduino, and so on.
Package Includes: 1 x Waveshare RGB Full-Color LED Matrix Panel, 3mm Pitch, 6464 Pixels
