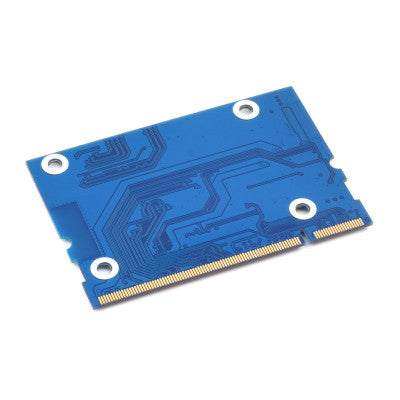

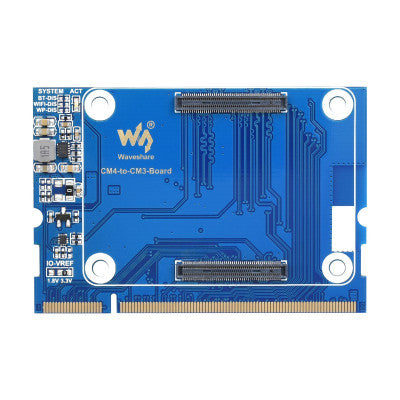

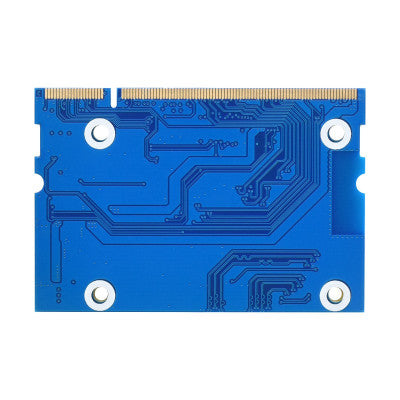

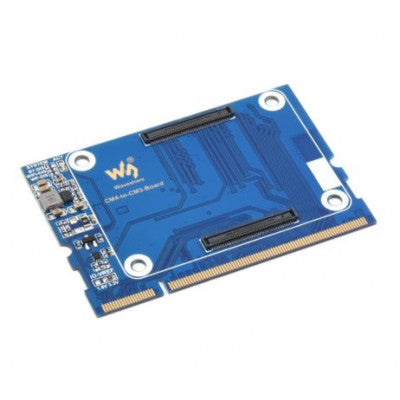

Raspberry Pi CM4 To CM3 Adapter
Alternative Solution for Raspberry Pi CM3 / CM3+
- Spec name: Alternative Solution for Raspberry Pi CM3 / CM3+
- Spec name: Use CM 4 To Replace CM3 Series, Solve The Short Supply Problem Of CM3nboard Standard CM4 Connector Support Access To Compute Module 4 Lite / EMMC Series Boards
Features:
- Onboard standard CM4 connector, support access to CM4 Lite / eMMc series boards
- Quad Core Cortex A72 64-bit processor, more powerful performance
- Onboard standard CM3 SODIMM, easily connected to the original CM3 ecosystem base board
- Onboard buck-boost DC chip, supports 3.3V/5V power input
Pins Descriptions: HDMI, GPIO0~27, GPIO28, GPIO29, GPIO31, GPIO33, GPIO30, GPIO32, GPIO33, CSI0, CSI1, DSI0, DSI1, USB2.0, SDIO
Package Includes:
- Spec name: 1 x Raspberry Pi CM4 To CM3 Adapter
Images are for illustration only; actual product may vary.
