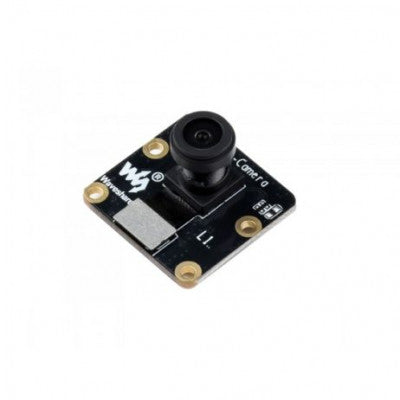

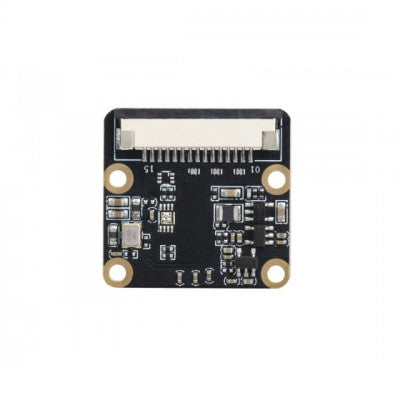

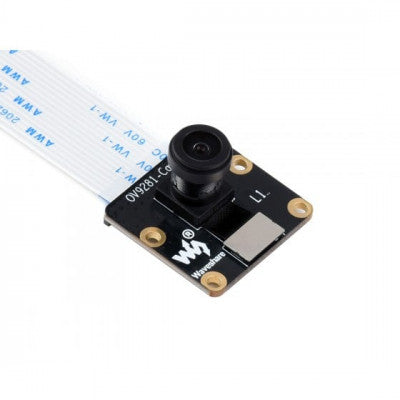

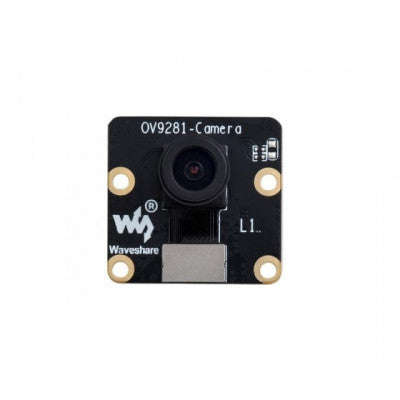

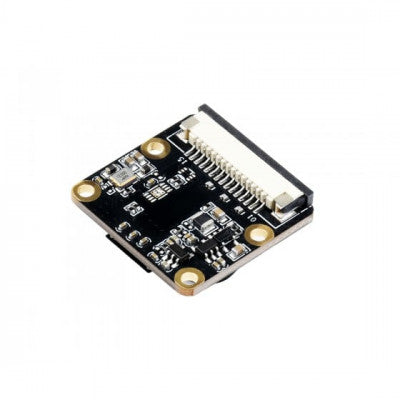

Waveshare OV9281-120 Mono Camera for Raspberry Pi
High-resolution global shutter camera module for Raspberry Pi boards
- Sensor: Monochrome global shutter OV9281
- Pixel Size: 3 m x 3 m
- Active array size: 1280 x 800
- Optical Size: 1/4 inch
- Focusing Range: 65mm ~ infinite
- IR Sensitive: Visible light only, build-in 650nm IR cut filter
- Output interface: 1-lane MIPI serial output with Arducam SDK
- Output formats: RAW 8/10
Top Features:
- Global shutter for gesture detection
- High-Quality Camera support
- Low-light sensitivity for depth detection
- Monochrome or NIR camera capability
The OV9281 camera module is designed for Raspberry Pi boards, directly connectable to the CSI-2 camera interface without extra hardware. An adapter board can link FOUR cameras to a single Raspberry Pi, supporting the High-Quality Camera. Its global shutter and low-light sensitivity make it ideal for gesture detection, head and eye tracking, and depth and motion detection applications. Device manufacturers can implement monochrome or NIR camera devices, reducing memory usage with the Y8 stream format. The Camera Module 2, replacing the original in April 2016, features a Sony IMX219 8-megapixel sensor for high-definition video and still photography.
Applications:
- Security
- High dynamic range imaging
- Unattended surveillance
- Stereo vision
- Machine vision
- Automation
*Images are for illustration only; actual product may vary.
