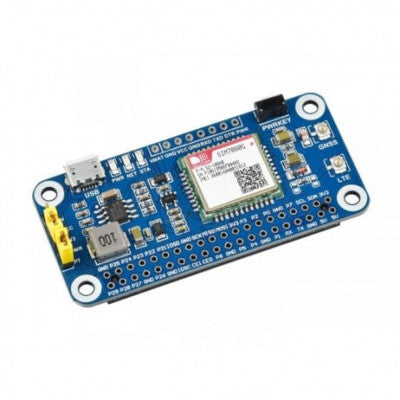

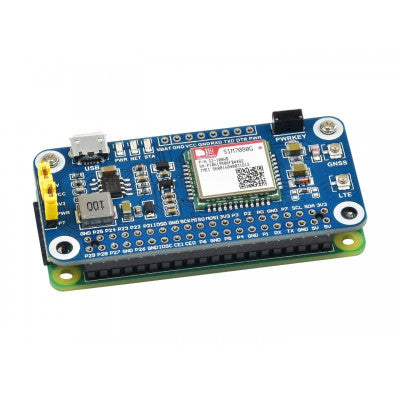

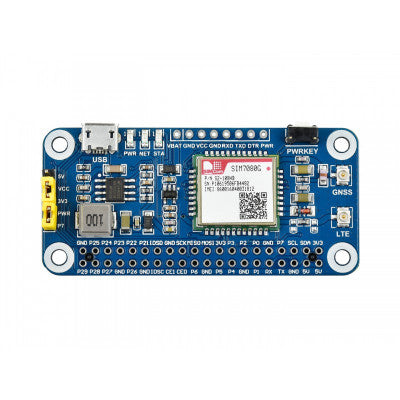

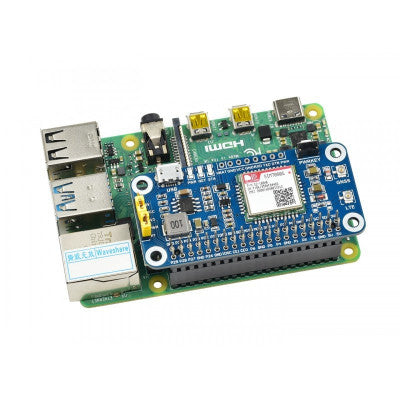

NB-IoT/Cat-M(EMTC)/GNSS HAT For Raspberry Pi
A telecommunication HAT with multi communication functionalities
- Based On: SIM7080G
- Global Applicability: Yes
- Supported Bands: NB-IoT, Cat-M, GNSS
- Supported Networks: LTE, 4G, 5G
- Ideal For: IoT applications, asset tracking, remote monitoring
Top Features:
- Standard Raspberry Pi 40PIN GPIO extension
- Supports various communication protocols
- GNSS positioning with multiple satellite systems
- Onboard USB interface for testing and data retrieval
This HAT is designed to support the evolving world of IoT technologies, offering low bandwidth options like NB-IoT and Cat-M alongside high bandwidth standards. With global band support and positioning capabilities, it is ideal for a range of IoT applications.

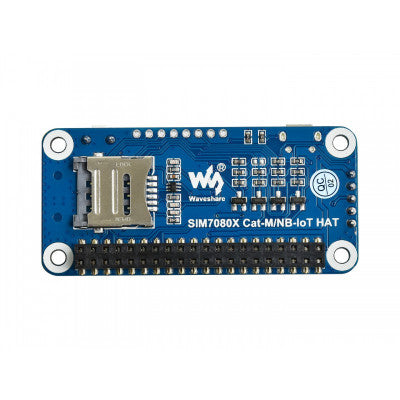

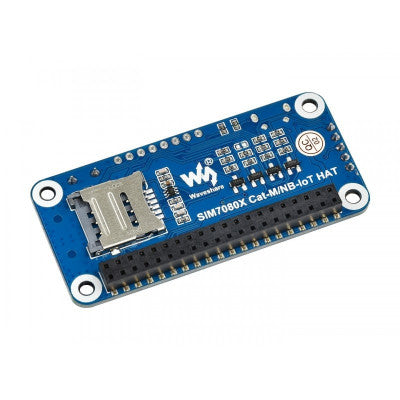

The HAT comes with a SIM card slot for 1.8V SIM cards, LED indicators for monitoring, and common baudrate auto-negotiation. It also includes development resources and manuals for easy setup with Raspberry Pi, Arduino, or STM32.
Specifications:
- Raspberry Pi Compatibility: Yes, 40PIN GPIO
- Communication Protocols: TCP, UDP, HTTP, HTTPS, TLS, DTLS, PING, LWM2M, COAP, MQTT
- GNSS Support: GPS, GLONASS, BeiDou, Galileo
- UART Control Pins: Yes, breakout pins
- Voltage Translator: 3.3V (switchable to 5V)
- SIM Card Slot: 1.8V only
- LED Indicators: 3x
- Baudrate: 9600/19200/38400/57600/115200 bps

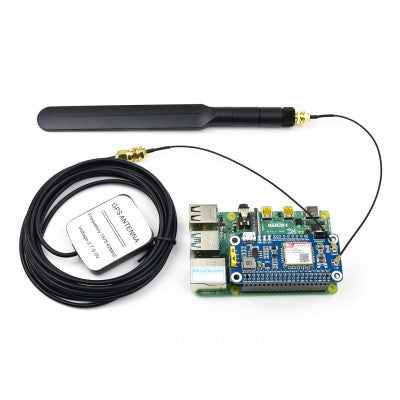

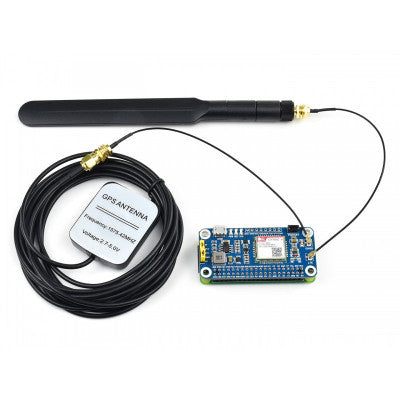

Package Includes:
- 1 X SIM7080G Cat-M/NB-IoT HAT
- 1 X LTE antenna
- 1 X GPS External Antenna (B)
- 1 X USB type A plug to micro plug cable
- 1 X 40PIN female header
- 1 X RPi screws pack (2pcs)
* Images are for illustration only; actual product may vary.
