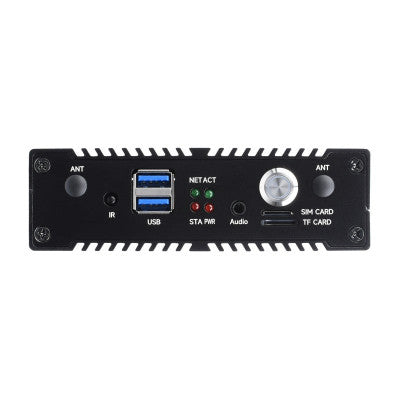

Waveshare NAS Multi-functional Mini-Computer
A versatile and compact computing solution designed for Raspberry Pi Compute Module 4.
- Networking: Gigabit Ethernet RJ45 connector 2 (Original Network port ETH0, and PCIE extended Network port ETH1), miniPCIE connector, supports 4G module (USB protocol, cannot support PCIE protocol), Nano-SIM card slot supports standard Nano-SIM card for 4G/3G/2G Internet access
- M.2: Dual NVME Solid State Drives slots (compatible with 2230, 2242, 2260, 2280)
- USB: USB 3.2 Gen1 (5Gbps) port 2
- CSI Camera: MIPI CSI-2 camera port 2, 15pin 1.0mm FPC connector
- HDMI: HDMI 2, supports 4K 30fps output
- Audio: 3.5mm earphone/mic jack
- RTC: Real-time clock with battery socket and ability to wake Compute Module 4
- TF Card Slot: TF card socket for Compute Module 4 Lite (without eMMC) variants
- Power Input: Type-C (5V 4A)
- Dimensions: 128 x 122 x 36mm
Features:
- All-in-one Mini-Computer for home and small office
- Simple solution, no expert networking knowledge required
- 2 M.2 M KEY slots for NVME SSDs
- MINI PCIE connector for 4G module
The Waveshare NAS Multi-functional Mini-Computer is a powerful computing platform designed for enthusiasts, developers, and small-scale enterprises. It leverages the Raspberry Pi Compute Module 4 for enhanced processing capabilities and improved memory. With features like dual NVME SSD slots, HDMI 4K output interfaces, and dual Gigabit Ethernet connectors, this mini-computer offers a versatile and efficient solution for a wide range of applications.
Package Includes: 1 x Waveshare NAS Multi-functional Mini-Computer Designed for Raspberry Pi Compute Module 4
* Images are for illustration only; actual product may vary.
