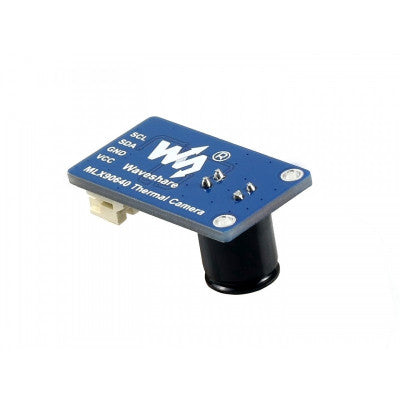

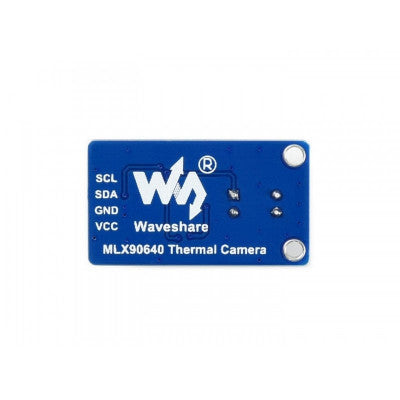

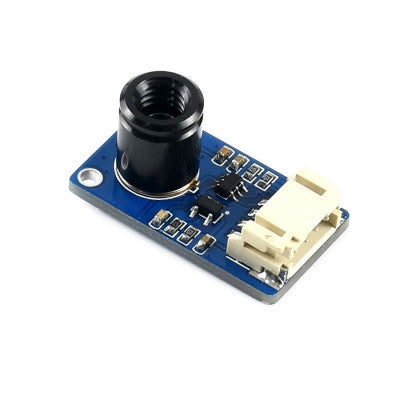

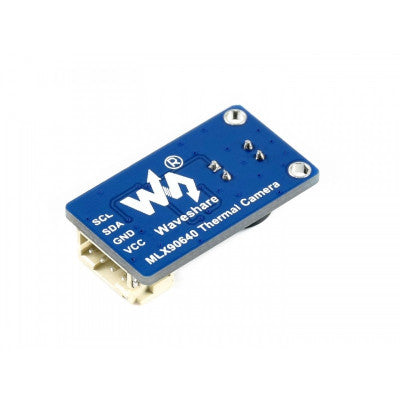

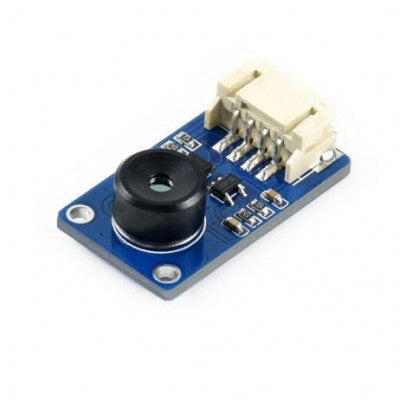

MLX90640-D110 Thermal Imaging Camera
High-resolution thermal imaging camera with wide field of view and I2C interface
- Operating Voltage (VDC): 3.3 ~ 5
- Operating Current: 23mA
- Communication Interface: I2C
- Field of View (Horizontal x Vertical): 110° x 75°
- Operating Temperature (°C): -40 to 85
- Resolution: 1
- Refresh Rate: 0.5Hz~64Hz (programmable)
- Length (mm): 28
Top Features:
- 3224 pixel MLX90640 thermal sensor array
- I2C interface with up to 1MHz data rate
- 0.1K RMS NETD @1Hz refresh rate
- Compatible with 3.3V/5V operating voltage
This 3224 pixel, 110° field of view, IR array thermal imaging camera communicates via the I2C interface. It is compatible with 3.3V/5V operating voltage and supports host platforms such as Raspberry Pi/Arduino(ESP32)/STM32. By utilizing the MLX90640 far-infrared thermal sensor array, this module can detect the IR distribution of objects in the field of view, turn the data into the surface temperature of the objects by calculation, and then generate thermal images. Due to the small form factor, it can be easily integrated into miscellaneous industrial or intelligent control applications.
Applications:
- High precision non-contact temperature measurements
- IR thermal imaging devices, IR thermometers
- Smart home, intelligent building, intelligent lighting
- Industrial temperature control, security monitoring, intrude/movement detection

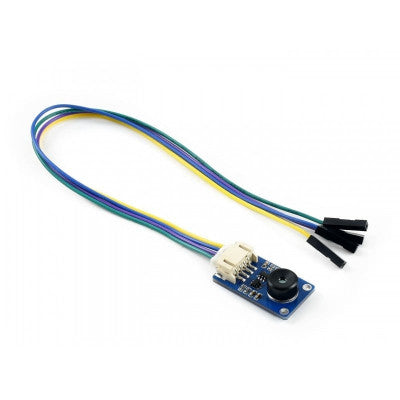

Package Includes:
- 1 x MLX90640-D110 Thermal Camera
- 1 x PH2.0 4PIN wire
*Images are for illustration only; actual product may vary.
