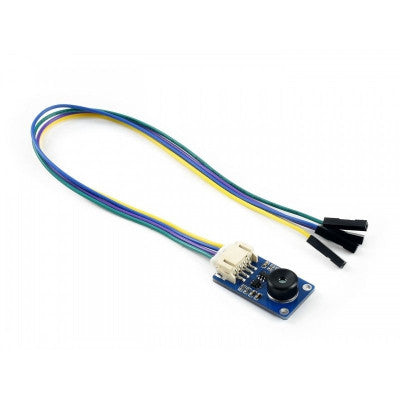

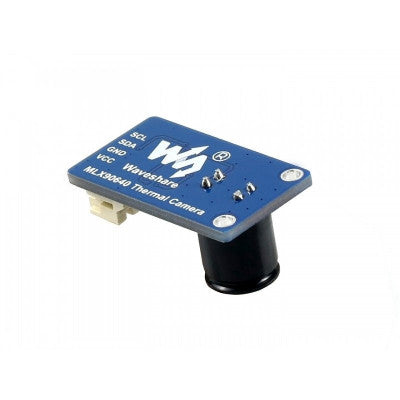

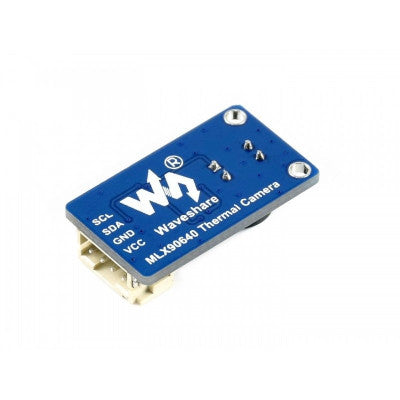

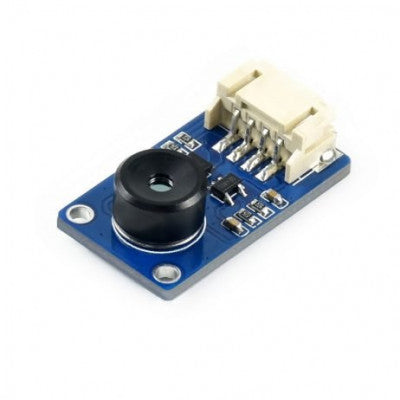

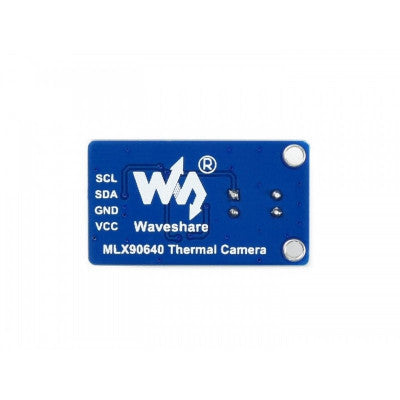

MLX90640-D110 Thermal Imaging Camera
A high-resolution thermal imaging camera with IR array and I2C interface.
- Operating Voltage (VDC): 3.3 ~ 5
- Operating Current: 23mA
- Communication Interface: I2C
- Field of View (Horizontal Vertical): 55° x 35°
- Operating Temperature (C): -40 to 85
- Resolution: 1
- Refresh Rate: 0.5Hz~64Hz (programmable)
- Length (mm): 28
- Width (mm): 16
- Height (mm): 3
- Mounting Holes Diameter (mm): M2
- Weight (gm): 6
Top Features:
- 3224 pixel MLX90640 far-infrared thermal sensor array
- I2C interface with up to 1MHz data rate
- 0.1K RMS NETD @1Hz refresh rate
- Compatible with 3.3V/5V operating voltage
By utilizing the MLX90640 far-infrared thermal sensor array, this camera can detect the IR distribution of objects in the field of view, calculate the surface temperature, and generate thermal images. Its small form factor allows easy integration into various industrial or intelligent control applications.
Applications:
- High precision non-contact temperature measurements
- IR thermal imaging devices and thermometers
- Smart home, intelligent building, intelligent lighting
- Industrial temperature control, security monitoring, intrude/movement detection
Package Includes:
- 1 x MLX90640-D110 Thermal Camera
- 1 x PH2.0 4PIN wire
* Images are for illustration only; actual product may vary.
