Diffuse Reflection Laser Sensor Module Laser Ranging Module Obstacle Detection
Signal output indicator, Features boost circuit
- Spec name: Effective distance: 0.8m(typ), 1.5m(max)
- Spec name: Power: 2.5V ~ 5.0V
- Spec name: Dimension: 47.7mm * 17.9mm
- Spec name: Mounting holes size: 2.0mm
Top Features:
- Obstacle detection
- Pipeline counter
- Smart robot
- Obstacle-avoiding car

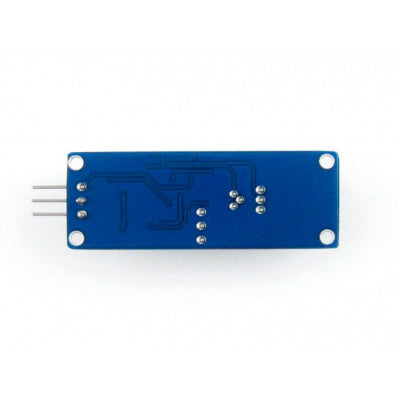

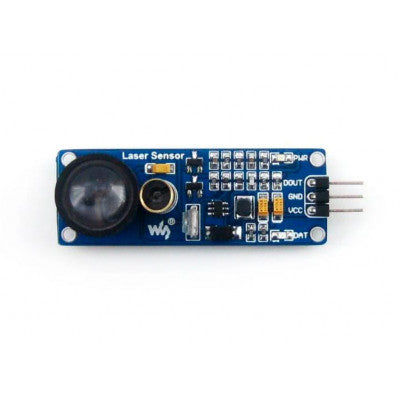

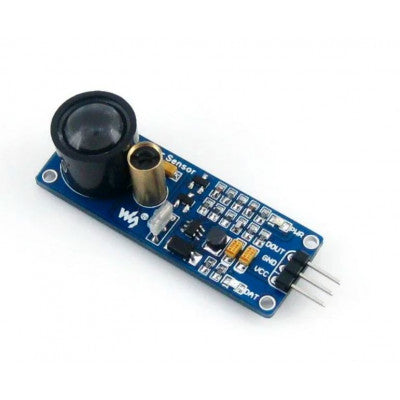

A Waveshare Laser Sensor contains a transmitter and a receiver. In the transmitter, there is an oscillating tube that can generate a shockwave at a frequency of 180KHz. After being amplified by a transistor, the shockwave is applied to the laser tube for exciting. In the receiver, there is a receiving tube matching the oscillating tube, which can receive the reflected light. The laser sensor adopts modulation processing technology, allowing the receiving tube to only receive the reflected light at the same frequency, efficiently preventing interference from visible light.
Applications:
- Obstacle detection
- Pipeline counter
- Smart robot
- Obstacle-avoiding car
Package Includes:
- 1 x Laser Sensor
- 1 x 3-pin custom connector jumper wire
Images are for illustration only; actual product may vary.
