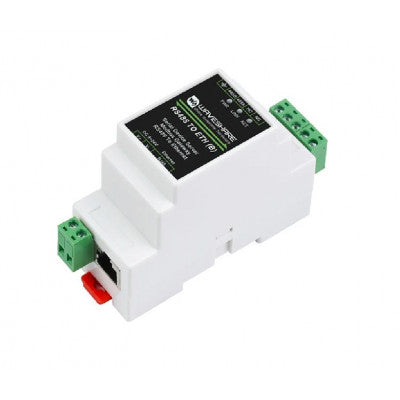

Waveshare Industrial Serial Server, RS485 to RJ45 Ethernet, TCP/IP to Serial, Rail-Mount Support
This RS485 device is a versatile data acquisitor/IoT gateway for industrial environments.
- Communication interface: RS485, wiring terminal mode

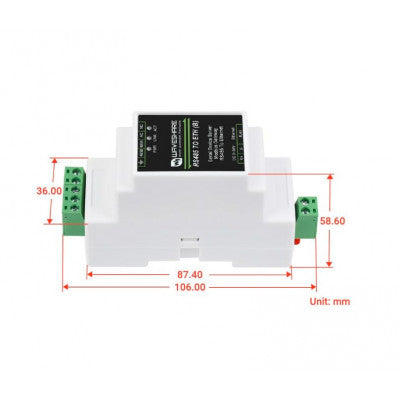

- Dimensions: L x W x H = 8.7cm × 3.6cm × 5.9cm
- Ethernet: RJ45 interface, 2 KV surge protection
- Serial port: RS485 × 1 (RXD, TXD, GND)
- Baud rate: 300~115200bps
- Check Digit: None, Odd, Even, Mark, Space
- Data bits: 5~9 bits
- Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP
- Power: 9~24V DC
- Operating temperature: -40~85°C
- Storage temperature: -45~165°C
- Humidity range: 5~95% relative humidity
Top Features:
- Guide rail design for easy cabinet installation
- Compact size with minimal space requirements
- Terminal type power supply with wide voltage input
- Support for up to 32 slave devices on RS485 interface

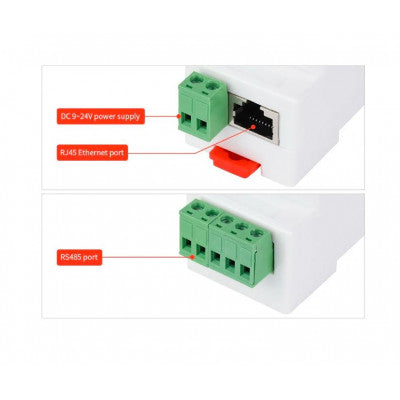

This module serves as a serial server, Modbus gateway, MQTT gateway, RS485 to JSON converter, and more. It is equipped with RS485 and Ethernet ports, screw terminals for power input, and supports a wide-range power supply of 9~24V. The rail-mount flame-retardant case design ensures easy installation and suitability for various applications such as data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring.
Supporting functions like MQTT gateway, JSON to Modbus RTU, 645 instrument protocol, and HTTP POST/GET data upload, this device offers versatility and reliability in industrial settings.
