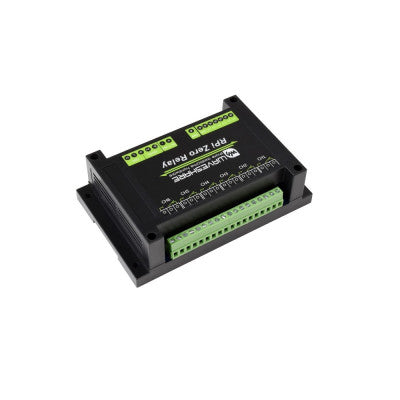

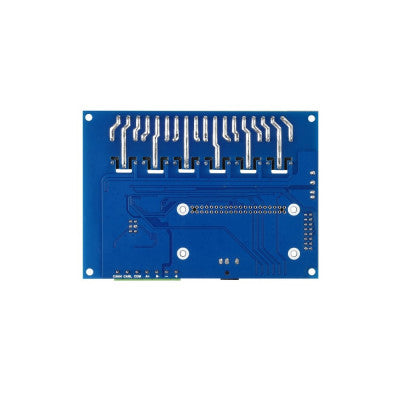

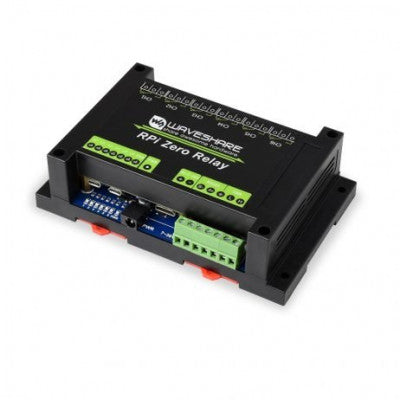

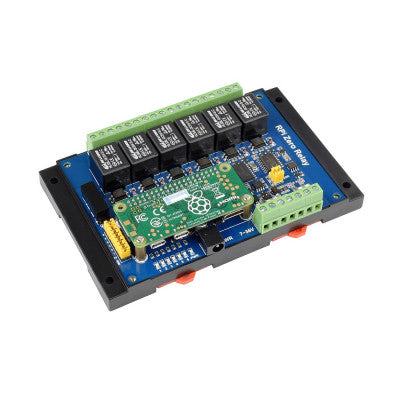

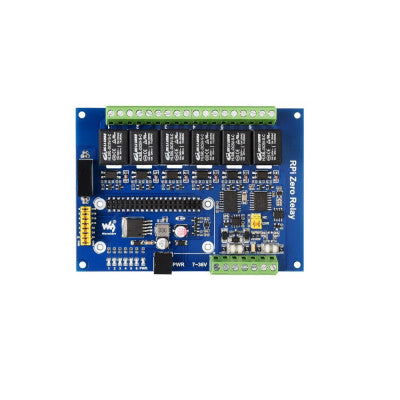

Waveshare Industrial 6-ch Relay Module for Raspberry Pi Zero, RS485/CAN with Isolated Protections
Control your Raspberry Pi Zero with this versatile relay module
- RS485 half-duplex communication: using SP3485, UART control, auto RX/TX switch
- CAN half-duplex communication: using MCP2515 + SN65HVD230 solution, SPI control
- Onboard unibody power supply isolation: provides stable isolated voltage, no extra power supply needed for the isolated terminal
- Onboard photocoupler isolation: prevents interference from external high-voltage circuits connected to the relay
- Onboard TVS (Transient Voltage Suppressor): effectively suppresses surge voltage and transient spike voltage, lightning-proof & anti-electrostatic
- Onboard resettable fuses and protection diodes: ensures current/voltage stable output, prevents over current/voltage, better shock-resistance performance
- High-quality relay, contact rating: 10A 250V AC or 10A 30V DC

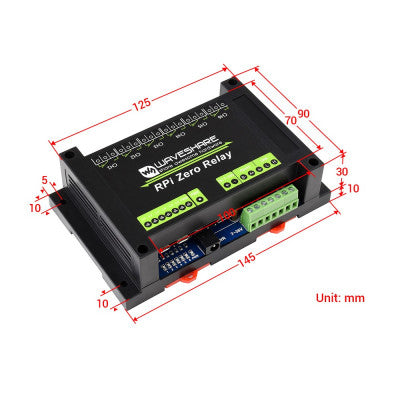

- ABS protection enclosure with rail-mount support: easy to install, safe to use

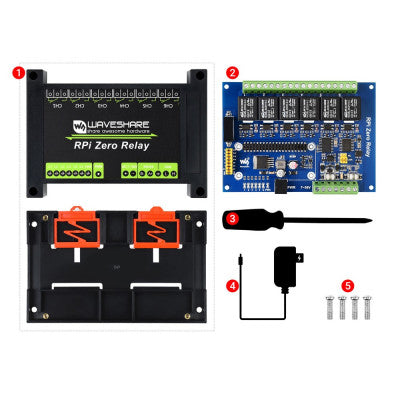

Package Includes:
- 1 x Waveshare Industrial 6-ch Relay Module for Raspberry Pi Zero
- 1 x Power Adapter
Comes with development resources and manual (wiring Pi and python examples).
Need more details or interested in bulk pricing? Reach out to our sales team directly - sales02@thansiv.com +91-8095406416
Images are for illustration only; actual product may vary.
