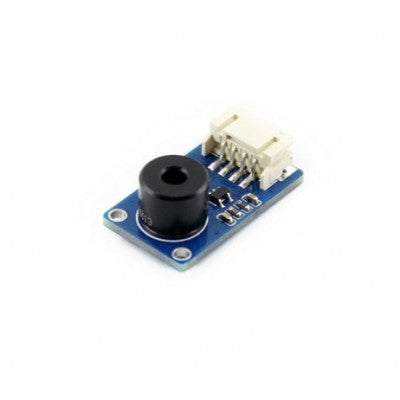

MLX90614 Infrared Thermometer
An advanced non-contact temperature measurement solution
- Recommended Power Supply: 3.3 ~ 5.3V
- Measuring range (area): 40°C ~ 85°C
- Measuring range (object): -70°C ~ 380°C
- Resolution: 0.02°C
- Precision: 0.5°C (0~50°C)
- Field of view (FOV): 35°
- Length (mm): 28
- Width (mm): 16
- Height (mm): 3
- Mounting Holes Diameter (mm): M2
- Weight (gm): 5
- Shipment Weight: 0.01 kg
- Shipment Dimensions: 3 x 2 x 1 cm
Top Features:
- Non-contact temperature measurement
- High precision and resolution
- Fast response time
- Calibrated with temperature compensation

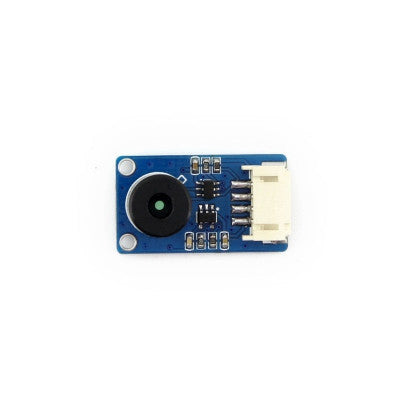

Both the IR-sensitive thermopile detector chip and the signal conditioning ASSP are integrated into the same TO-39 can, ensuring high accuracy and resolution. The thermometer is factory calibrated with a digital PWM and SMBus output, providing a range of -20°C to 120°C with an output resolution of 0.14°C.

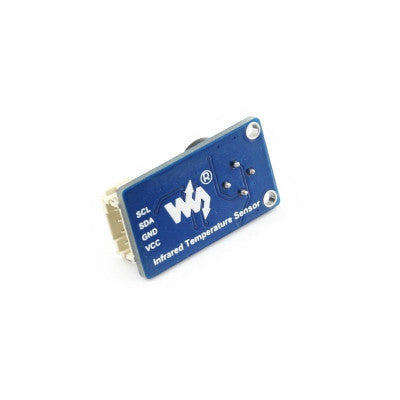

If working with an MCU, connect VCC to 3.3V ~ 5V, GND to GND, SDA to MCU I2C data line, and SCL to MCU I2C clock line.
Application areas include high-precision contact-less temperature measurement, industrial temperature control, and household appliances temperature control. The thermometer works directly with 3.3V/5V MCU systems, thanks to the built-in level translation.

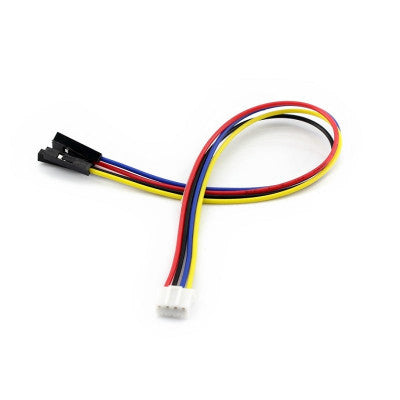

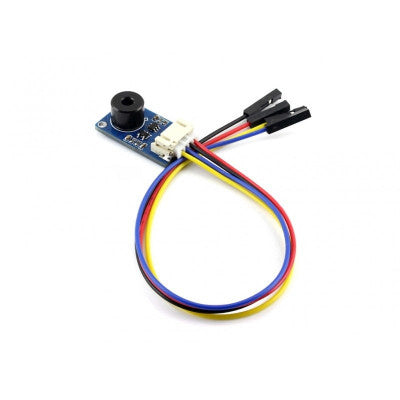

Package Includes: 1 x Infrared Temperature Sensor, 1 x PH2.0 4PIN wire
* Images are for illustration only; actual product may vary.
