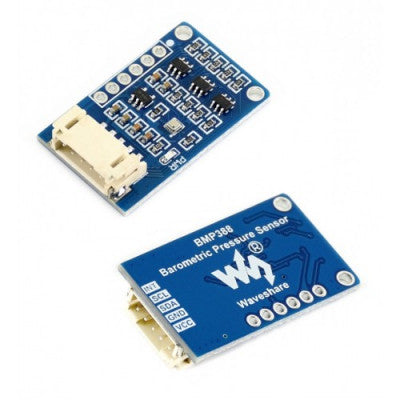

24-Bit High Precision Barometric Pressure Sensor
A high precision sensor for accurate altitude tracing and barometric pressure/temperature measuring.
- Operating Voltage: 3.3V/5V
- Communication Interface: I2C/SPI
- Barometric Pressure Operation Range: 300~1250hPa
- Barometric Pressure Absolute Accuracy: ±0.40hPa (@900~1100hPa, 25~40°C)
- Barometric Pressure Relative Accuracy: ±0.08hPa (@900~1100hPa, 25~40°C)
- Temperature Coefficient Offset: ±0.75Pa/K (@700~1100hPa, -20~65°C)
- Temperature Absolute Accuracy: ±0.5°C (0~65°C)
- Possible Resolution: 0.016Pa (high precision mode)
- Possible Sampling Rate: 200Hz
- Operating Temperature: -40~85°C

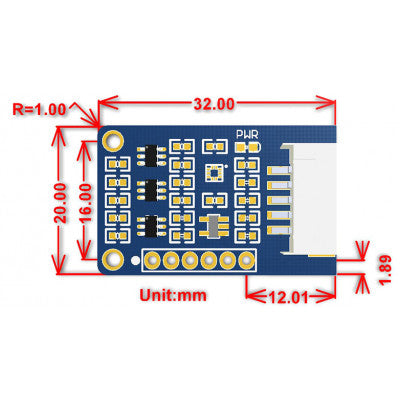

- Dimension: 32mm × 20mm
- Mounting Hole Size: 2.0mm
Features:
- Supports I2C/SPI interface
- Compatible with 3.3V/5V voltage levels
- Ultra small form factor
- Low power consumption
This BMP388 Barometric Pressure Sensor is ideal for drones, accurate altimeter, environment monitoring, IoT projects, and more.

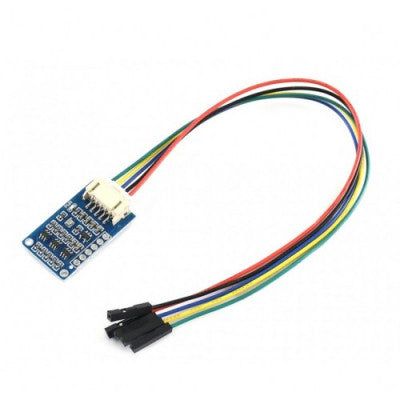

Package Includes: 1 x BMP388 24-Bit High Precision Barometric Pressure Sensor, Accurate Altitude Tracing - I2C Interface
Images are for illustration only; actual product may vary.
