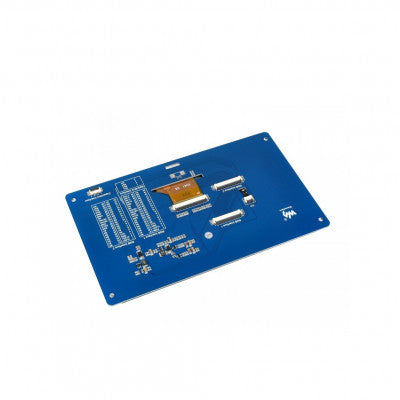

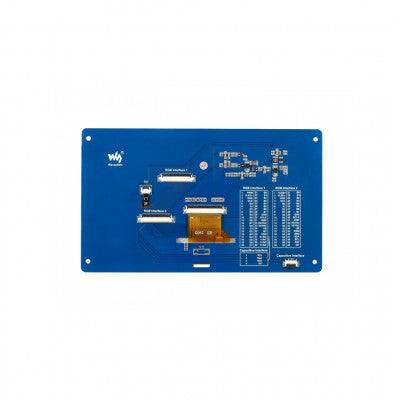

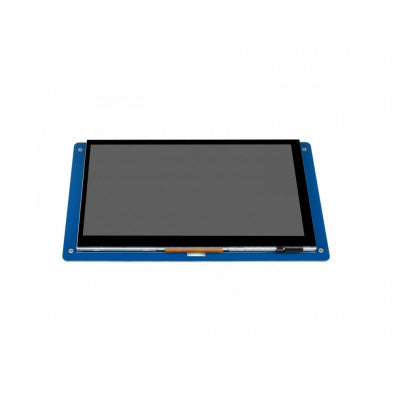

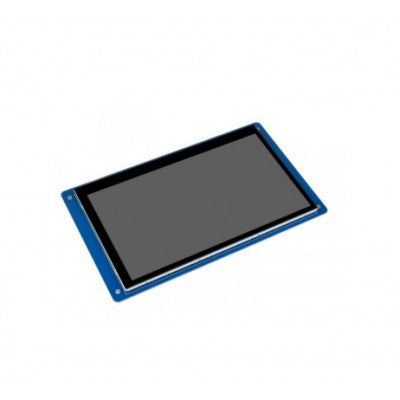

Waveshare 7inch Capacitive Touch LCD (G) 800x480
7 inch 800x480 Multicolor Graphic LCD with capacitive touch screen
- LCD Type: TFT
- LCD Interface: 24-bit Parallel
- Touch Screen Interface: 4 Wires, Capacitive
- Touch Controller: GT911
- Backlight: LED
- Display Size (mm): 154.08 (W) x 85.92 (H)
- Dot Pitch (mm): 0.0642 (W) x 0.1790 (H)
- Aspect Ratio: 8 : 5
- Resolution: 800 x 480 (Pixel)
Features:
- Used To Awake The External Tp Controller
- Read/write I2c Data
- Control I2c Clock
Package Includes: 1 x 7inch Capacitive Touch LCD (G), 1 x 40-pin FFC, 1 x 4-pin FFC
* Images are for illustration only; actual product may vary.
