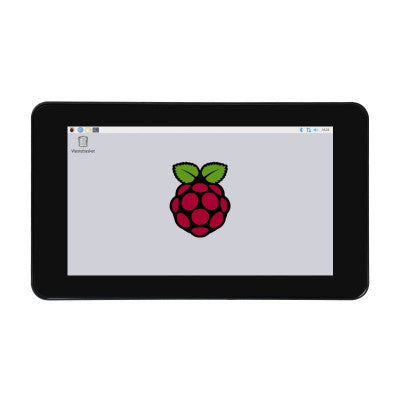

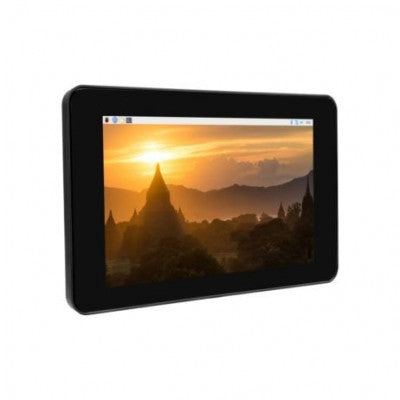

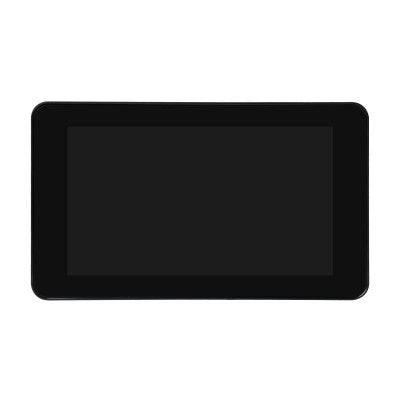

Waveshare 7inch Capacitive Touch IPS Display for Raspberry Pi
7inch IPS display with capacitive touch panel, 1024x600 resolution, DSI Interface
- Resolution: 1024 x 600

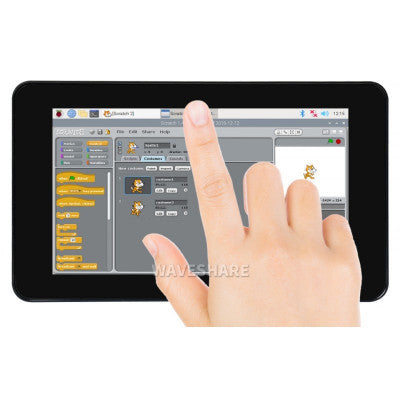

- Touch Panel: Capacitive, supports up to 5-points touch
- Hardness: Toughened glass with 6H hardness
- Interface: DSI, refresh rate up to 60Hz
- Driver: Provided for Raspberry Pi OS (Raspbian)
- Brightness: Adjustable by software
Top Features:
- 7inch IPS display with capacitive touch
- 1024x600 resolution
- Supports up to 5-points touch
- DSI interface with 60Hz refresh rate

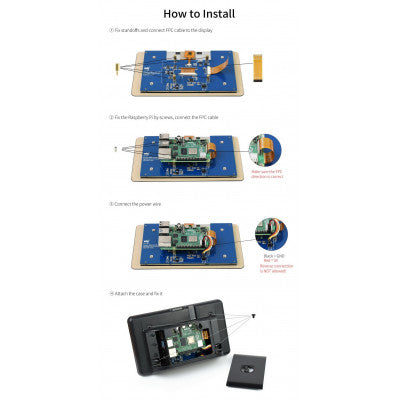

Hardware Connection:

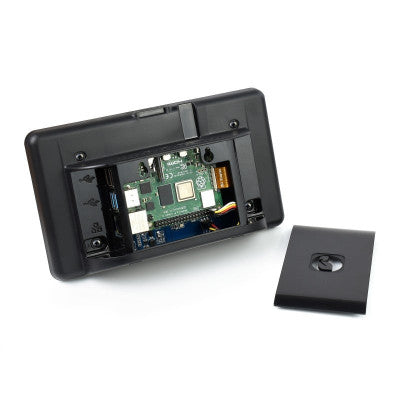

Connect the 7inch DSI LCD (C) to the DSI interface of Raspberry Pi boards using the 15PIN FPC cable. For easy installation, fix the Raspberry Pi board to the backside of the display using standoffs and screws provided. Connect the 4PIN cable between the display and the 40PIN of Raspberry Pi as shown in the provided figure.
Package Includes:
- 1 x Waveshare 7inch Capacitive Touch IPS Display

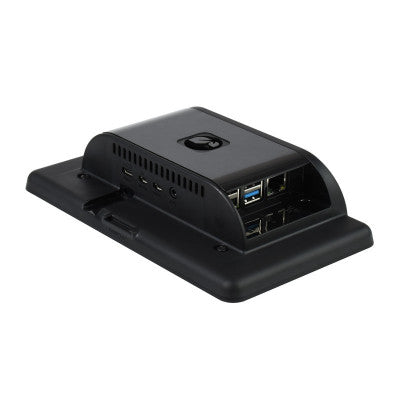

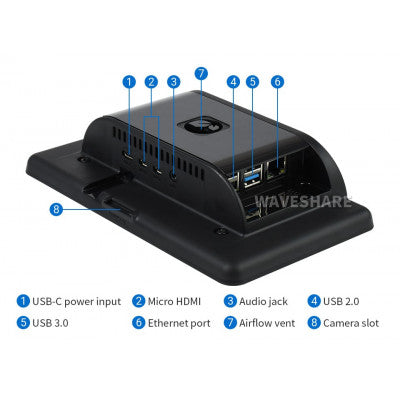

- 1 x Protection Case
*Images are for illustration only; actual product may vary.
