Waveshare 7inch Capacitive Touch Display for Raspberry Pi with 5MP Front Camera
7" DSI display with 800x480 resolution and 5MP camera for Raspberry Pi
- Display Size: 7 inches
- Resolution: 800x480
- Touch Type: 5-point capacitive

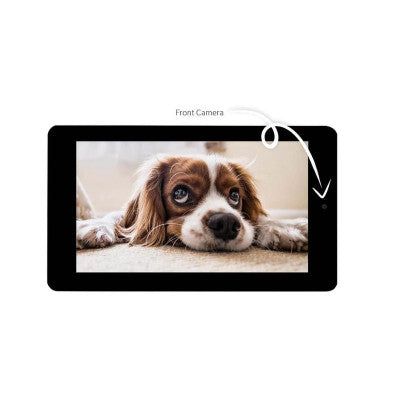

- Camera: 5MP OV5647 sensor
- Camera Resolution: Up to 2592x1944 images, 1920x1080P @30FPS videos
- Interface: DSI for display, CSI for camera
- Backlight Adjustment: Software/touch controlled
- Compatibility: Raspberry Pi boards with DSI connector
Top Features:
- 7" DSI display for Raspberry Pi
- 5-point capacitive touch
- 5MP OV5647 Camera with various video resolutions
- Backlight adjustment via software

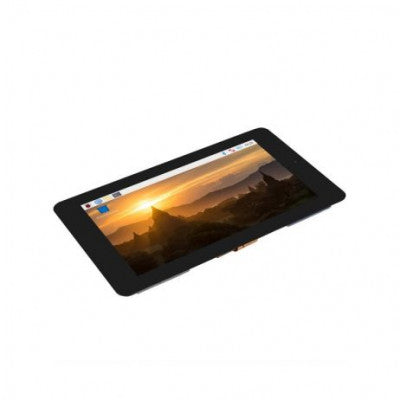

The Waveshare 7inch Capacitive Touch Display is a 7" panel with 800x480 resolution and 5-point capacitive touch support. It can be used with Raspberry Pi boards featuring a DSI connector, such as Raspberry Pi 4, 3B+, 3A+. The included 5MP OV5647 camera module connects via the CSI port and offers high-resolution image and video capture capabilities.
The display connects to the Raspberry Pi using the DSI ribbon cable and 5V/GND jumper wire method, leaving most GPIO pins free for other project needs. The toughened glass panel and adjustable backlight make it suitable for various project enclosures.

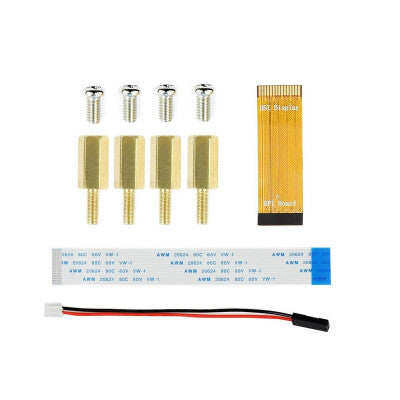

Package Includes:
- 1 x 7inch DSI LCD
- 1 x FPC 15PIN 1.0 pitch 50mm (opposite sides)
- 1 x FPC 15PIN 1.0 pitch 120mm (opposite sides)
- 1 x 2PIN wire 10cm
- 1 x Screws pack
For hardware and software setup, please follow the provided tutorial.
* Images are for illustration only; actual product may vary.
