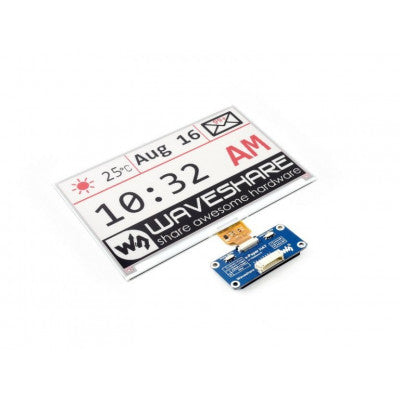

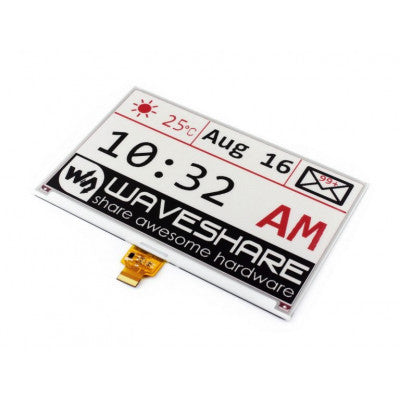

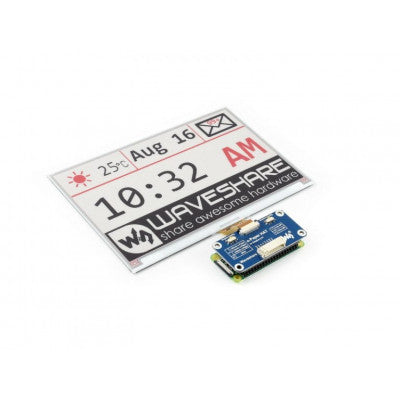

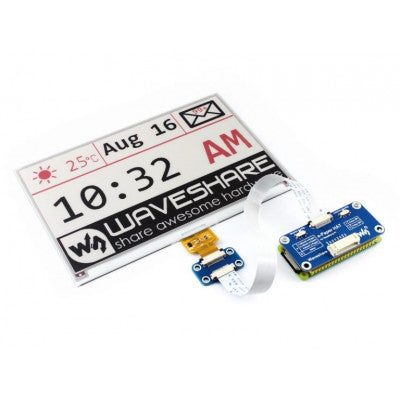

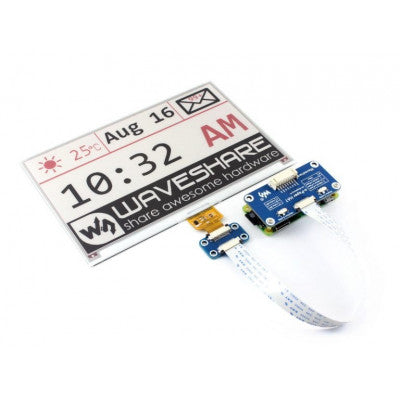

7.5-inch E-Ink Display HAT for Raspberry Pi
E-Ink display with 640x384 resolution, SPI interface, and ultra-low power consumption.
- Operating Voltage (VDC): 3.3 ~ 5
- Display Size (inch): 7.5
- Outline dimension (mm): 170.2 x 111.2
- Dot Pitch: 0.255 x 0.255
- Grey level: 2
- Display Color: Black and White
- Display Resolution: 640x384
- Viewing Angle: >170
Features:
- No backlight, retains content without power
- Ultra-low power consumption, only needed for refreshing

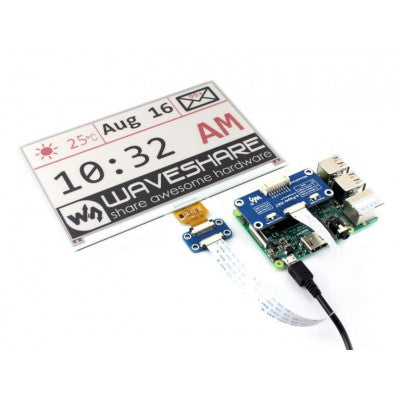

- Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W
- SPI interface for connecting with various controller boards
This E-Ink display HAT for Raspberry Pi offers a unique viewing experience similar to printed paper. With no backlight, it can retain the last displayed content even when the power is off. The ultra-low power consumption and wide viewing angle make it ideal for outdoor use. It communicates via SPI interface, making it compatible with a range of controller boards like Raspberry Pi, Arduino, and Nucleo.
Interface:
- VCC: 3.3V/5V
- GND: Ground
- DIN: SPI MOSI pin
- CLK: SPI SCK pin
- CS: SPI chip selection, low active
- DC: Data/Command selection
- RST: External reset, low active
- BUSY: Busy status output, high active
Package Includes:

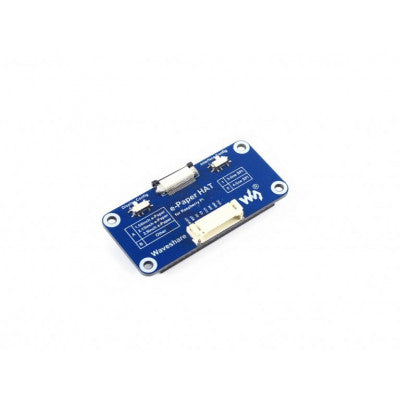

- 1 x 7.5-inch E-Ink Paper display HAT for Raspberry Pi

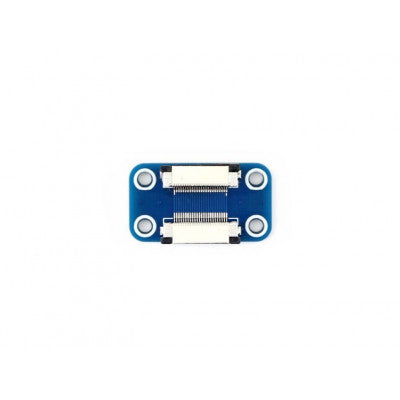

- 1 x e-paper Hat for Raspberry Pi to e-paper Adapter

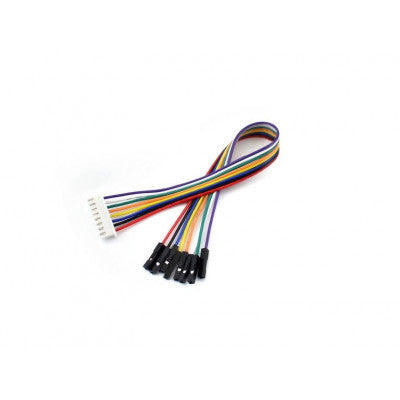

- 1 x Interfacing Cable

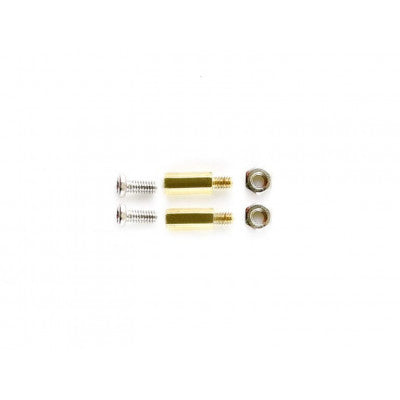

- 1 x Nut-Bolt and Spacers set
Note: No Raspberry Pi is included in the package.
