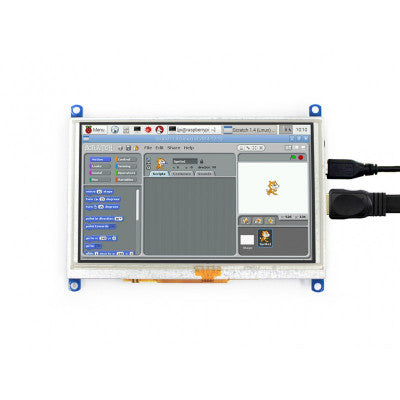

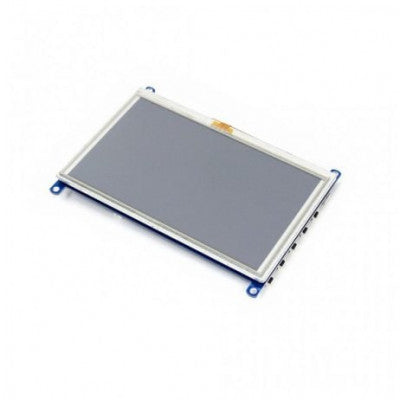

Waveshare 5-inch Resistive Touch Screen LCD
5-inch LCD with 800x480 resolution, resistive touch panel, and wide compatibility
- Brand: Waveshare
- Pixel Resolution: 800 x 480
- Display Size (inch): 5
- HDMI Port: Yes
- View Angle: 170
- Touch type: Resistive
- Length (mm): 121
- Width (mm): 89.5
- Weight (gm): 170
Top Features:
- 800x480 hardware resolution, configurable up to 1920x1080
- Resistive touch control
- Supports Raspberry Pi, Jetson Nano, BB Black, Banana Pi, and desktop computers
- Driver-free operation with various systems
This Waveshare 5-inch Resistive Touch Screen LCD offers a resolution of 800x480 and a resistive touch panel. It is compatible with Raspberry Pi and can also function as a computer monitor. The LCD supports various operating systems including Windows 10/8.1/8/7, Raspbian, Ubuntu, Kali, Retropie, and WIN10 IoT.
When using the LCD with systems like Raspberry Pi, manual resolution setting is required to avoid abnormal display. However, this issue does not occur when using the LCD with the PC version of Windows.

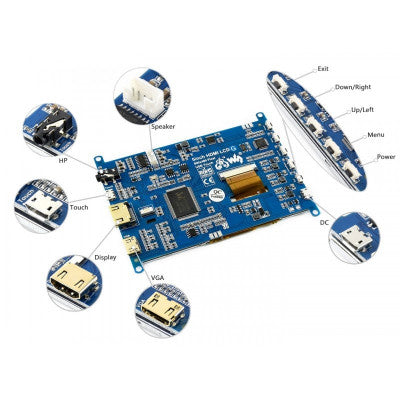

The LCD features a multi-languages OSD menu for power management, brightness/contrast adjustment, and more. It also includes a 3.5mm audio jack, speaker connector, HDMI audio output support, and VGA input compatibility.
Package Includes:
- 1 x 5inch HDMI LCD (G)
- 1 x HDMI cable
- 1 x HDMI to Micro HDMI Adapter
- 1 x USB type A plug to micro B plug cable
- 1 x RPi screws pack (4pcs)
- 1 x Quick start sheet
*Images are for illustration only; actual product may vary.
